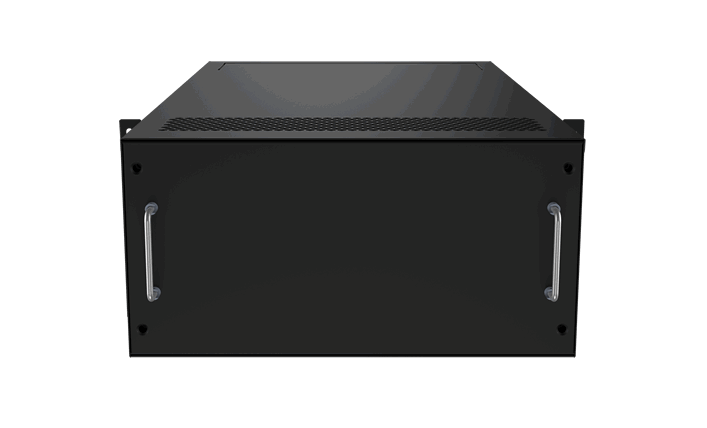

AC2000 series frame type air cooled air conditioner（3KW~12KW）

PORTOWER product

AC2000 series frame type air cooled air conditioner（3KW~12KW）

AC2000 series frame type air-cooled air conditioner, placed close to the heat source in the cabinet, can accurately handle the high apparent heat generated by the server in the cabinet, effectively prevent local hot spots.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelAC2000-3 Series | AC2000-5 Series | AC2000-7 Series | AC2000-12 Series

cooling_capacity_kw3.5 | 5 | 7.5 | 12.5

air_volume_m_h800 | 1100 | 1650 | 2200

air_supply_modeHorizontal air supply

functionOptional constant temperature and humidity function

ptc_electric_heating_kw1 | 1 | 1 | 2

humidifier_kg_h1 | 1 | 1.5 | 3

refrigerantR410A

indoor_unit_power_supply_v_ph_hz220/1/50

indoor_unit_size_width_depth_height_mm443*715*218 | 443*715*218 | 443*715*351 | 443*715*440

indoor_unit_weight_kg27 | 28 | 36 | 42

outdoor_unit_power_supply_v_ph_hz220/1/50

outdoor_unit_dimensions_mm794*310*537 | 794*310*537 | 1045*431*760 | 1045*431*1375

outdoor_unit_weight_kg30 | 34 | 60 | 85

protection_classIPX4
