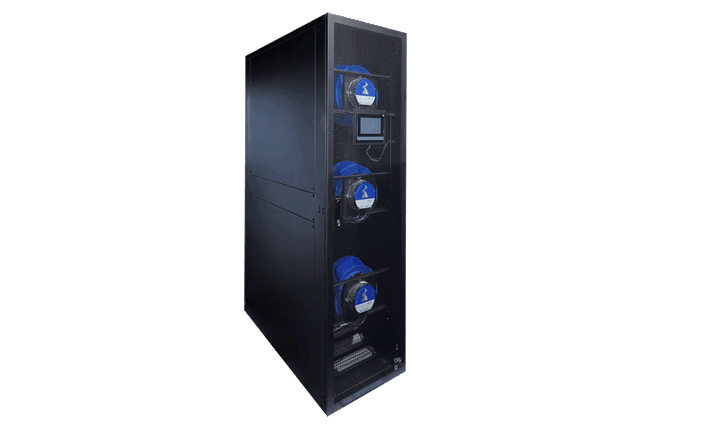

AC3000 series interrow air cooled air conditioner(12KW~65KW)

AC3000 series interrow air-cooled air conditioner is a cooling, efficient, energy-saving precision air conditioner for the room, which is suitable for the micro-module data center with high temperature or humidity control precision and high sensible heat requirements. The inter-column air conditioner is placed in the r

AC3000 series interrow air-cooled air conditioner is a cooling, efficient, energy-saving precision air conditioner for the room, which is suitable for the micro-module data center with high temperature or humidity control precision and high sensible heat requirements. The inter-column air conditioner is placed in the rack arrangement and installed side by side with the server cabinet. The air is discharged from the front of the unit, and the air is returned at the rear. It is close to the heat source and cooled at the near end. It can meet the environmental control requirements of various equipment rooms in different regions. All air-cooled products are equipped with R410A refrigerant type DC inverter scroll compressor, which is highly efficient and energy saving.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

modelAC3000-12 Series | AC3000-25 Series | AC3000-35 Series | AC3000-40 Series | AC3000-50 Series | AC3000-65 Series
cooling_capacity_kw13.3 | 25.1 | 35.8 | 42 | 52.2 | 62.1
functionOptional constant temperature and humidity function
electric_heating_capacity_kw1 | 1 | 4 | 6 | 6 | 6
humidification_capacity_kg_h1.5 | 1.5 | 1.5 | 3 | 3 | 3
humidification_methodWet film humidification
indoor_unit_air_volume_m_h2700 | 5000 | 6000 | 8500 | 10500 | 12000
number_of_indoor_fans4 | 5 | 7 | 3 | 3 | 3
indoor_unit_power_supply_v_ph_hz3N+PE ~ 380V 50Hz
indoor_unit_size_width_depth_height_mm300*1200*2000 | 300*1200*2000 | 300*1200*2000 | 600*1200*2000 | 600*1200*2000 | 600*1200*2000
indoor_unit_weight_kg255 | 300 | 250 | 350 | 380 | 400
outdoor_unit_weight_kg83 | 115 | 168 | 135 | 195 | 234
