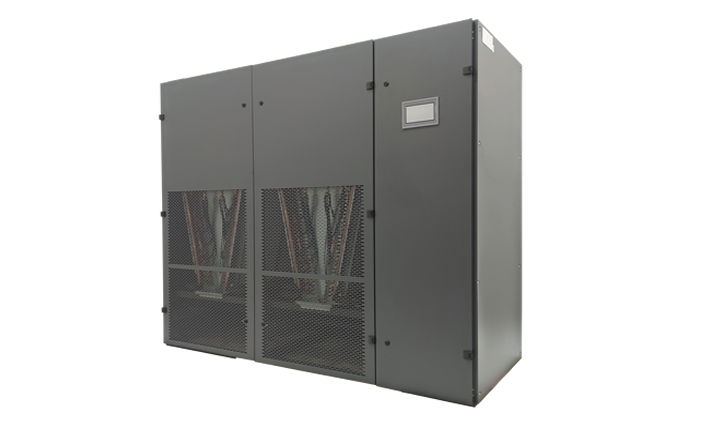

AC4000(40~120kw) Series ordinary outdoor room inter-level air cooled air conditioner

AC4000(40 ~ 120kw) series of ordinary outdoor room air-cooled air conditioning is an efficient and energy-saving precision air conditioning product, with more stable, more reliable, more energy saving, more flexible expansion, higher control precision and so on. Modular structure design, compact structure, easy handlin

AC4000(40 ~ 120kw) series of ordinary outdoor room air-cooled air conditioning is an efficient and energy-saving precision air conditioning product, with more stable, more reliable, more energy saving, more flexible expansion, higher control precision and so on. Modular structure design, compact structure, easy handling, full frontal maintenance.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

modelAC4000- 40 series | AC4000- 4 6 Series | AC4000- 55 series | AC4000- 65 series | AC4000- 70 series | AC4000- 80 series | AC4000- 90 series | AC4000- 99 series | AC4000- 120 series
cooling_capacity_kw36.8 | 41.9 | 50.3 | 60.8 | 65 | 73.8 | 83.8 | 92.1 | 108.5
functionOptional constant temperature and humidity
electric_heating_capacity_kw6 | 9 | 10 | 10 | 10 | 10 | 10 | 10 | 10
electric_humidification_capacity_kg_h8 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9
filter_gradeG4
indoor_unit_air_volume_m_h11650 | 12000 | 14000 | 17000 | 18000 | 23000 | 24000 | 25820 | 27500
number_of_indoor_fans1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2
indoor_main_power_supply3N+PE~380V 50Hz
indoor_unit_size_width_depth_height_mm1475*1000 *1980 | 1475*1000 *1980 | 1475*1000 *1980 | 1710*1000 *1980 | 1710*1000 *1980 | 1710*1000 *1980 | 2375*1000 *1980 | 2375*1000 *1980 | 2375*1000 *1980
indoor_unit_weight_kg635 | 410 | 640 | 645 | 650 | 690 | 855 | 855 | 855
outdoor_unit_size_width_depth_height_mm1495*1235 *1165 | 2090*1235 *1165 | 1495*1235 *1165 | 1495*1235 *1240 | 1495*1235 *1240 | 1495*1235 *1240 | 2090*1235 *1165 | 2090*1235 *1255 | 2090*1235 *1240
outdoor_unit_weight_kg115*2 | 165 | 115*2 | 135*2 | 135*2 | 135*2 | 165 | 195 | 234
