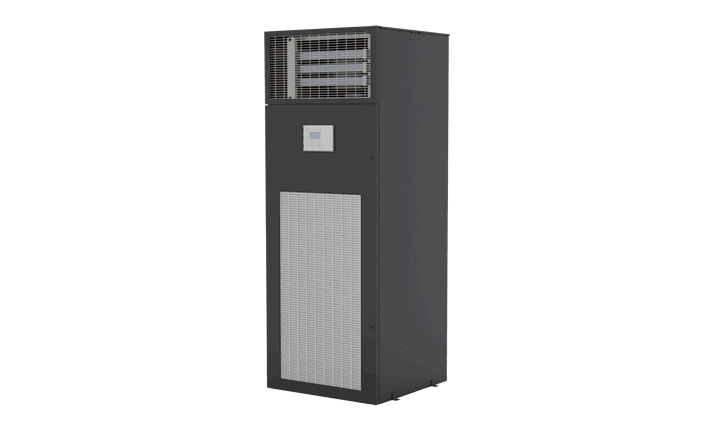

AC4000 series 8kW-20kW room air-cooled air conditioner

AC4000 series room level air cooled air conditioner (8KW ~ 20KW) is designed for high sensible heat of electronic equipment, large air volume small enthalpy difference, automatic cooling, heating, humidification, dehumidification and other control and adjustment of the room room to maintain the constant temperature and

AC4000 series room level air cooled air conditioner (8KW ~ 20KW) is designed for high sensible heat of electronic equipment, large air volume small enthalpy difference, automatic cooling, heating, humidification, dehumidification and other control and adjustment of the room room to maintain the constant temperature and humidity, effectively remove the sensible heat caused by computer calculation. Professional planning, precise configuration, and rich options can provide the most suitable and reliable temperature control solutions for different customers.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

modelAC4000-8 Series | AC4000-12 Series | AC4000-20 Series
cooling_capacity_kw6.8 | 11.4 | 18.5
functionOptional constant temperature and humidity function
electric_heating_capacity_kw3 | 6 | 6
humidification_capacity_kg_h2.5 | 2.5 | 3
humidification_methodWet film humidification
filter_gradeG4
indoor_unit_air_volume_m_h2200 | 3200 | 4900
number_of_indoor_fans1
indoor_main_power_supply3N+PE~380V 50Hz
indoor_unit_size_width_depth_height_mm600*560*1850 | 600*560*1850 | 750*750*2000
indoor_unit_weight_kg170 | 185 | 210
outdoor_unit_size_width_depth_height_mm790*355*828 | 790*355*1228 | 1320*560*1140
outdoor_unit_weight_kg70 | 80 | 85
