PORTOWER product

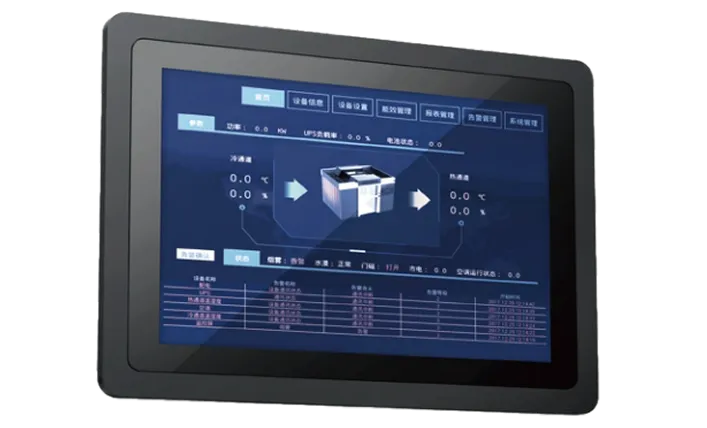

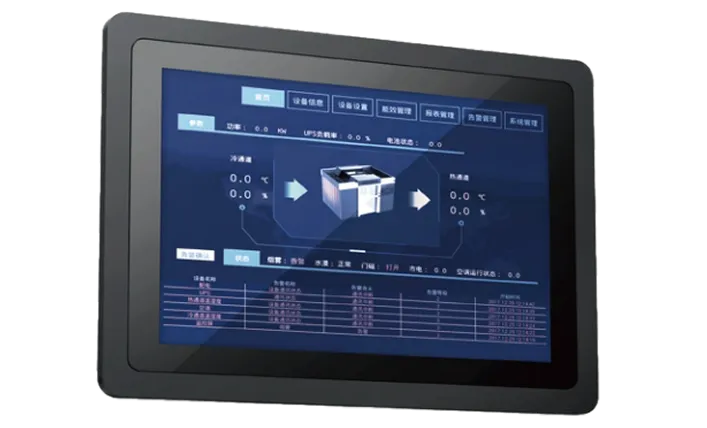

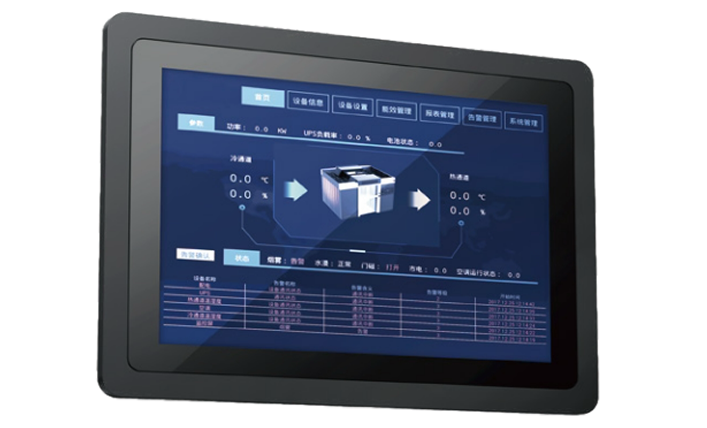

BMS master control

BMS master control. Technical specifications and quotation support are available from PORTOWER.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

cpu_modelRK3568J 4-Core ARM A55 1.8GHz

ram4GB

rom32GB

osLinux

power_in16-32V

ethernet3 ports, 10/100/1000Mbps auto-sensing

rs232_rs4855-channel RS485

canRoute 3

di_do12-channel DI, 12-channel DO

m_2_ssd1st channel, SATA 3.0 solid-state drive

web_configurationSupported

usb2 ports USB 3.0

ac_power_loss_detectionSupported

hdmi_2_01 channel

wireless4G, cat4, full network compatibility, optional

screen_parameters10.1 inches, Resolution: 1280*800

protocol_lineModbus RTU, Modbus TCP, IEC104, DL/T 645, MQTT, CAN

functions_of_web_host_computerWEB login, permission management, device management, online upgrade, configuration management, interface management, message viewing, etc.

working_temperature-20-70℃

size159.6mm * 252.5mm * 39.6mm

modelBMS master control
