PORTOWER product

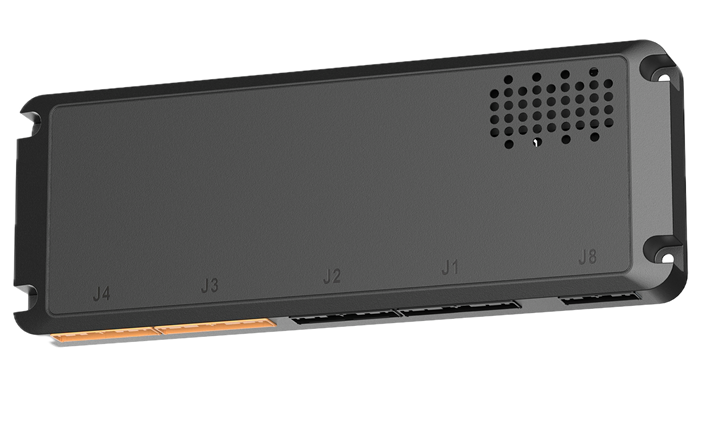

BMS slave control

Yunjian Information offers in-depth customization of BMS hardware and base software as well as electronic manufacturing services. The service products cover 1500V three-level BMS.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

working_power_supplyVoltage | 9-32V | 9-32V | 9-32V | 9-32V

battery_cluster_voltage_collectionChannel Number | 18 | 16 | 64 | 104

collection_range-40℃-125℃ | -40℃-125℃ | -40℃-125℃ | -40℃-125℃

collection_accuracy± 1℃ | ± 1℃ | ± 1℃ | ± 1℃

temperature_samplingNumber of Channels | 17 | 17 | 55 | 104

balanced_currentBalanced current | 100MA | 2A (Active Balancing) | 100MA | 100MA

rated_operating_voltageOperating voltage | 1500V | 1500V | 1500V | 1500V

isospi_address_coding/ | IO address encoding | IO address encoding | IO address encoding | IO address encoding

canNumber of channels | 1 | 1 | 1 | 1

daisy_chainNumber of Channels | / | / | 1 | 1

power_outputNumber of Channels | 2 | 2 | 2 | /

di_doNumber of Channels | 2 | 2 | 2 | /

overall_dimensions_length_width_heightOverall dimensions | 200*100*20 | 188 * 105 * 19.5 | 200*96*29 | 200*96*49

modelBMS slave control
