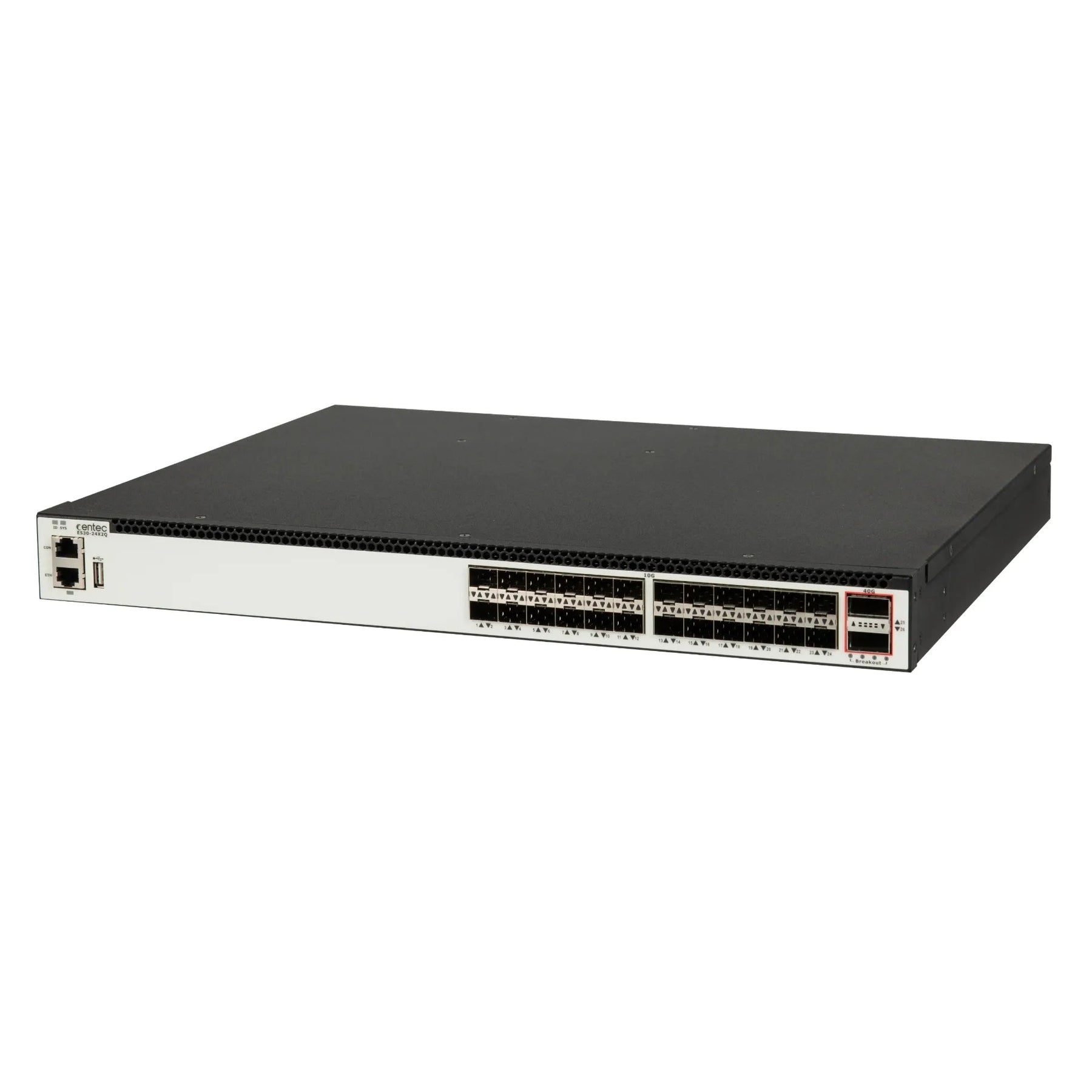

E530-48S4X

E530 series three-layer Ethernet switch (hereinafter referred to as "E530") is a high-performance switch built on Ethernet switching chip CTC7132, supporting multiple port types. E530 is equipped with CentecOS system software, supports mainstream protocol standards and applications, and enables convenient and rapid deployment and management.

Standard 1U 19 '' rack equipment

48 x 1GE SFP ports

4 x 10GE SFP+ ports

Plug and unplug dual power supply design

Front and rear fixed wind direction fan

Request a quotation: Some commercial or technical fields (material, certification, voltage, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelE530-48S4X

Dimensions(L*W*H)4.4 x 44.2 x 37.8 cm (1.7 x 17.4 x 14.9 in.)

Weight6.25KG

Management interfaceOne RJ45 type serial port, one RJ45 out-of-band management port, and one standard USB port

Interface48*1GE SFP port，4*10GE SFP+ port

Switching Capacity176 Gbps

Packet Forward Speed130.94 Mpps

Operating Temperature0 to 45 ºC

Storage Temperature-40 to 70 ºC

Storage Humidity0 to 95% (non-condensing)

包时延(ns)660ns

CPUSOC(双核, ARM A53)

Memory2GB

Flash8GB(eMMC)

包缓存9MB

Power InputAC 100-240V 50/60Hz Maximum voltage: 90 ~ 264V; 47~63Hz Maximum voltage range: -36 ~ -72V Operating voltage: 240V; 1A

Dual power inputYES

Power hot-plugYES

风扇风向前后/后前风向

风扇数量3

风扇热插拔特性58W

Typical power consumption70W

Maximum Power Consumption-

MTBF(hours)189901

MTBF(years)21.68
