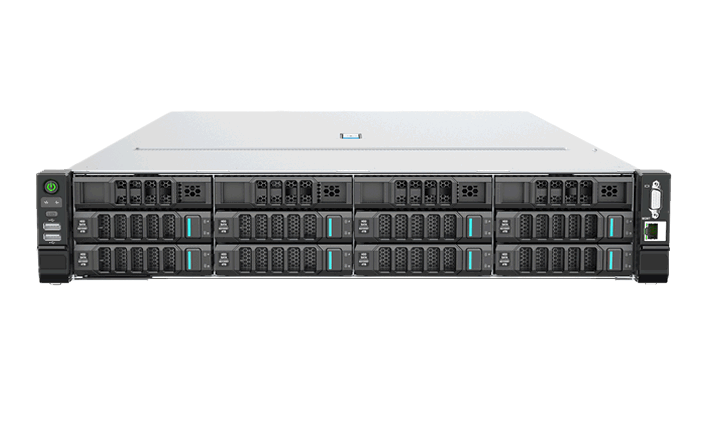

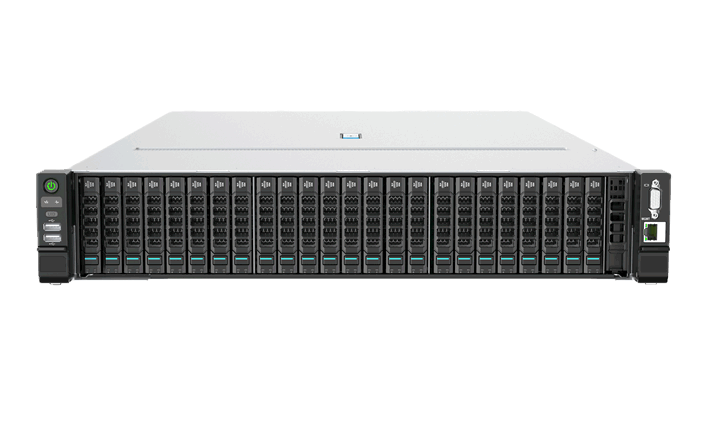

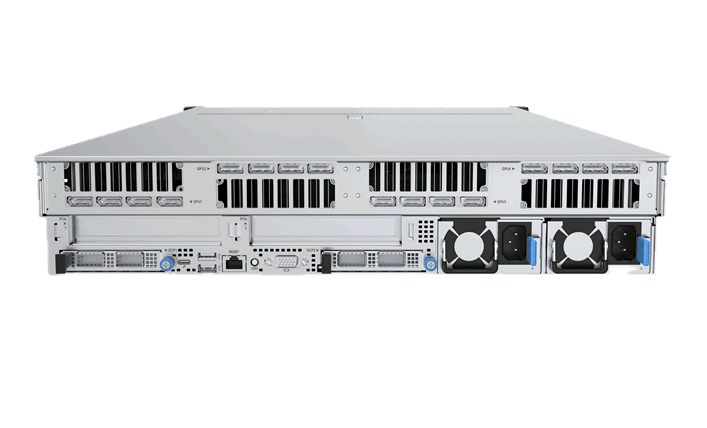

G7260 X5 Server

The G7260 X5 server, which supports two cpus, delivers up to a 52% improvement in processor floating-point performance and a 42% increase in the number of cores, coupled with 8-channel 3200MT/s DDR4 memory technology, providing users with up to a 60% increase in bandwidth. With the modular design of GPU Riser and struc

The G7260 X5 server, which supports two cpus, delivers up to a 52% improvement in processor floating-point performance and a 42% increase in the number of cores, coupled with 8-channel 3200MT/s DDR4 memory technology, providing users with up to a 60% increase in bandwidth. With the modular design of GPU Riser and structural components, it perfectly ADAPTS to dual-width GPU cards of various forms. 96% power efficiency, as well as a standard operating temperature design of 5 ° C to 40 ° C, provides users with higher energy efficiency returns.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

processorSupports up to 2 cpus, each with up to 40 cores, maximum power 270W
chipsetC621A
memorySupport up to 32 DDR4 memory slots, maximum speed 3200MT/s, support RDIMM or LRDIMM
gpu_supportSupport up to 4 double-width GPU cards, single card power consumption up to 450W
storage_controllerOptional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
storage_extensionSupports up to 25 hard drives Supports up to 12 3.5-inch hard drives Supports up to 25 2.5-inch hard drives Supports up to 2 NVMe U.2 hard drives Optional SATA/NVMe* M.2 options
pcie_expansionUp to 8 PCIe expansion slots Up to 6 PCIe standard slots Up to 2 OCP 3.0 slots
management_softwareIntegrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
networkOnboard 1 Gbps dedicated management network port; Supports two OCP3.0 network cards; Optional Network adapters based on standard PCIe slots
i_o_interfaceOne RJ45 management network port as standard, one rear VGA port, four USB ports (2 front, 2 rear) The Optional expansion card supports two rear USB ports, one USB Type-C management port, and one RJ45 management network port Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port
securitySupport chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
power_supplyOptional 2000W/2600W/2700W/3200W CRPS standard power supply, support 1+1 redundancy
operating_temperature5 ° C ~ 40 ° C (The operating temperature is affected by different configurations, please refer to the product technical documentation for details)
appearance_chassis_size2 u standard case 87 mm (high) (wide) * 447.4 mm * 799 mm (deep) (excluding security panel)
modelG7260 X5
