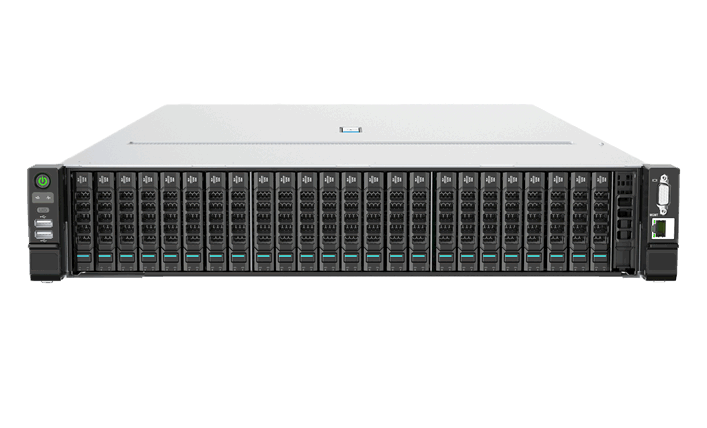

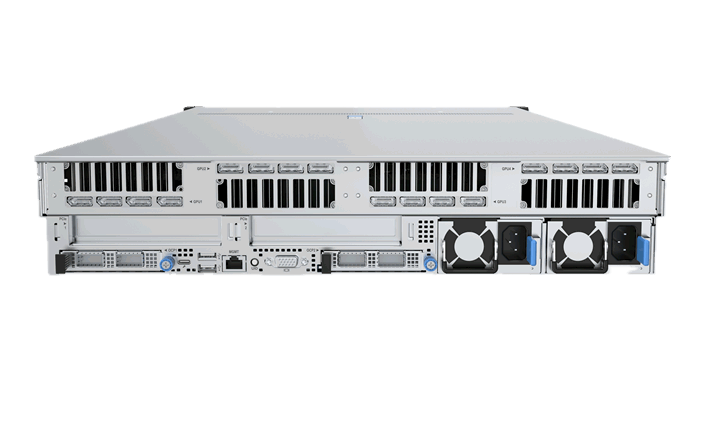

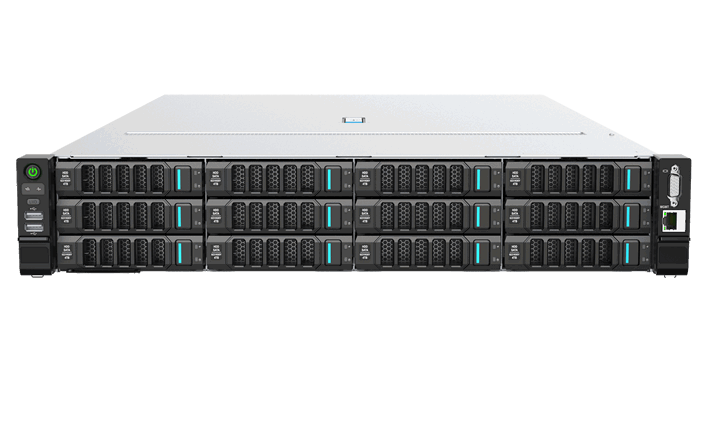

G7260 X6 Server

The new generation G7260 X6 server supports two cpus and 8-channel 5600MT/s DDR5 memory technology, providing users with up to 50% bandwidth improvement. Through the modular design of GPU Riser and structural components, the dual-width Gpus of different brands and models can be perfectly adapted. 96% power efficiency,

The new generation G7260 X6 server supports two cpus and 8-channel 5600MT/s DDR5 memory technology, providing users with up to 50% bandwidth improvement. Through the modular design of GPU Riser and structural components, the dual-width Gpus of different brands and models can be perfectly adapted. 96% power efficiency, as well as a standard operating temperature design of 5 ° C to 40 ° C, provides users with higher energy efficiency returns.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

processorMaximum support 2 cpus, a single maximum 64 cores, maximum power 385W, support HBM technology
chipsetC741
memorySupports up to 32 DDR5 memory slots at rates up to 5600MT/s, supports RDIMMs or LRDIMMs, and has capacities up to 8TB CXL 1.1*
gpu_supportSupport up to 4 double-width GPU cards, single card power consumption up to 450W
storage_controllerOptional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
storage_extensionSupports up to 29 hard drives Supports up to 12 3.5 "hard drives Supports up to 25 2.5" hard drives, Support for 4 additional E1.S hard drives Support for up to 4 NVMe U.2 hard drives Optional SATA/NVMe* M.2 options
pcie_expansionUp to 9 PCIe expansion slots Up to 7 standard PCIe expansion slots Up to 2 OCP 3.0 slots
management_softwareIntegrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
networkOne Gbps dedicated management network port on board Two OCP3.0 network adapters Optional Network adapters based on standard PCIe slots
i_o_interfaceStandard RJ45 management network port, 1 rear VGA port, 4 USB ports (2 front, 2 rear) Optional expansion card supports 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management network port Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port
securitySupport chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
power_supplyOptional 2000W/2600W/2700W/3200W CRPS standard power supply, support 1+1 redundancy
operating_temperature5 ° C ~ 40 ° C (The operating temperature is affected by different configurations, please refer to the product technical documentation for details)
appearance_chassis_size2 u chassis 87 mm (high) (wide) * 447.4 mm * 799 mm (deep) (excluding security panel)
modelG7260 X6
