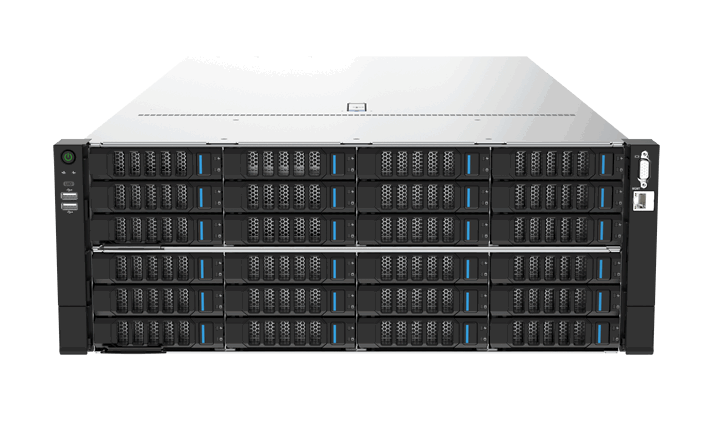

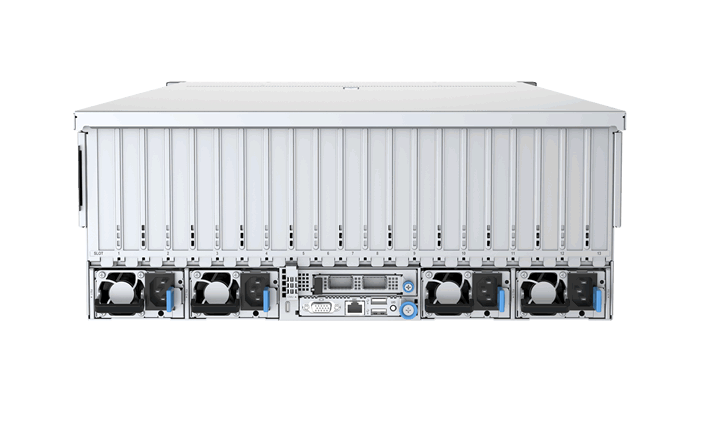

G7466 X5 GPU Server

The G7466 X5 server, which supports up to two cpus, can achieve up to 52% improvement in processor floating-point performance and 42% increase in the number of cores, combined with 8-channel 3200MT/s DDR4 memory technology, providing users with up to 60% bandwidth improvement. Flexible scalability with support for 16 P

The G7466 X5 server, which supports up to two cpus, can achieve up to 52% improvement in processor floating-point performance and 42% increase in the number of cores, combined with 8-channel 3200MT/s DDR4 memory technology, providing users with up to 60% bandwidth improvement. Flexible scalability with support for 16 PCIe4.0 slots and up to 50 hard disk slots. 96% power efficiency, as well as a standard operating temperature design of 5 ° C to 40 ° C, provides users with higher energy efficiency returns.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

gpu_module4U8 card — Pass through module | 4U8 card /10 card /12 card *— Switch Module
processorSupport up to 2 cpus, a single maximum of 40 cores, maximum power 270W
memorySupport up to 32 DDR4 memory, maximum speed 3200MT/s, support RDIMM or LRDIMM
storage_controllerOptional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
storage_extensionSystem SAS/SATA/NVMe hard disk configuration: Up to 24 3.5-inch hard disks Up to 50 2.5-inch hard disks Optional SATA/NVMe *M.2 options
pcie_expansionSupports up to 10 standard PCIe expansion slots Supports up to 8 x16 standard PCIe expansion slots Supports up to 1 OCP 3.0 slot | Supports a maximum of 29 PCIe slots Supports a maximum of 20 x16 standard PCIe slots Supports a maximum of one OCP 3.0 slot (optionally replaced with one standard PCIe slot)
management_softwareIntegrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
networkSupport one OCP3.0 NIC, optional 1/10/25/50/100/200/400GE PCIe standard NIC, optional dual-width DPU standard NIC
securitySupport for chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
fanFans Support 8 8056 fans, N+1 hot-swappable redundant fans
power_supplyOptional 2000W/2600W/2700W/3200W CRPS standard power supply, support 1+1 redundancy
operating_temperature5℃ ~ 40℃ (the working temperature can be affected by different configurations)
appearance_chassis_size4U chassis 175mm (H) × 447mm (W) × 898mm (D)
modelG7466 X5
