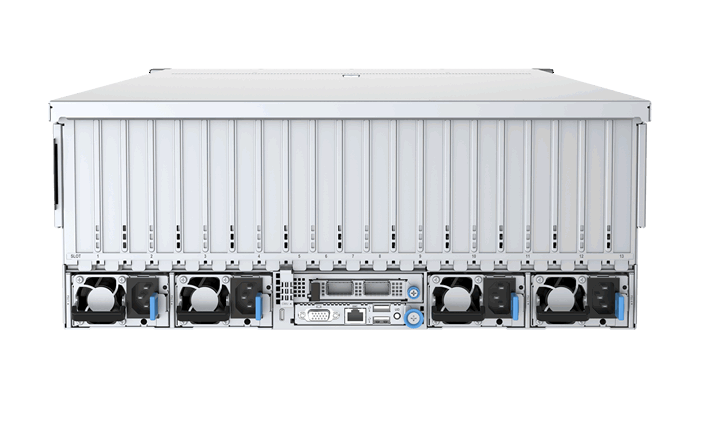

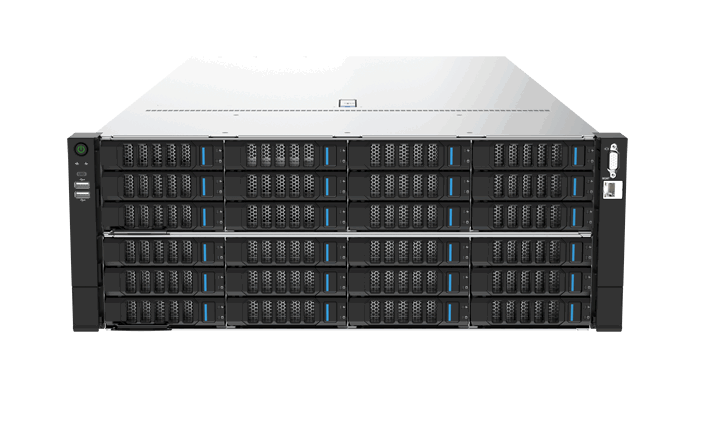

G7466 X6 GPU Server

The new generation G7466 X6 server supports up to two cpus and provides up to 50% bandwidth improvement with 8-channel 5600MT/s DDR5 memory technology. Flexible scalability with support for 20 PCIe5.0 slots and up to 50 hard disk slots. 96% power efficiency, as well as a standard operating temperature design of 5 ° C t

The new generation G7466 X6 server supports up to two cpus and provides up to 50% bandwidth improvement with 8-channel 5600MT/s DDR5 memory technology. Flexible scalability with support for 20 PCIe5.0 slots and up to 50 hard disk slots. 96% power efficiency, as well as a standard operating temperature design of 5 ° C to 40 ° C, provides users with higher energy efficiency returns.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

gpu_module4U8 card /10 card — Pass through module | 4U8 card /10 card /12 card *— Switch Module
processorMaximum support 2 cpus, a single maximum 64 cores, maximum power 385W, support HBM technical rate
memorySupport up to 32 DDR5 memory slots at rates up to 5600MT/s, support for RDIMMs or LRDIMMs, and capacity up to 8TB; CXL 1.1*
storage_controllerOptional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
storage_extensionSystem SAS/SATA/NVMe hard disk configuration: Up to 24 3.5-inch hard disks Up to 50 2.5-inch hard disks Optional SATA/NVMe *M.2 options
pcie_expansionSupports a maximum of 21 standard PCIe slots Supports a maximum of 10 x16 standard PCIe slots Supports one OCP3.0 slot (optionally replaced with one standard PCIe slot) | Supports a maximum of 29 PCIe slots Supports a maximum of 20 x16 standard PCIe slots Supports one OCP3.0 slot (optionally replaced with one standard PCIe slot)
management_softwareIntegrated BMC management chip AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
networkSupport one OCP3.0 NIC, optional 1/10/25/50/100/200/400GE PCIe standard NIC, optional dual-width DPU standard NIC
securitySupport for chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
fanFans Support 8 8056 fans, N+1 hot-swappable redundant fans
power_supplySupport four 2000W/2400W/2700W/3200W platinum power supplies, optional titanium dioxide power supplies, support N+N redundancy /N+1 redundancy
operating_temperature5℃ ~ 40℃ (the working temperature can be affected by different configurations)
appearance_chassis_size4U chassis 175mm (H) × 447mm (W) × 828mm (D)
modelG7466 X6

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
