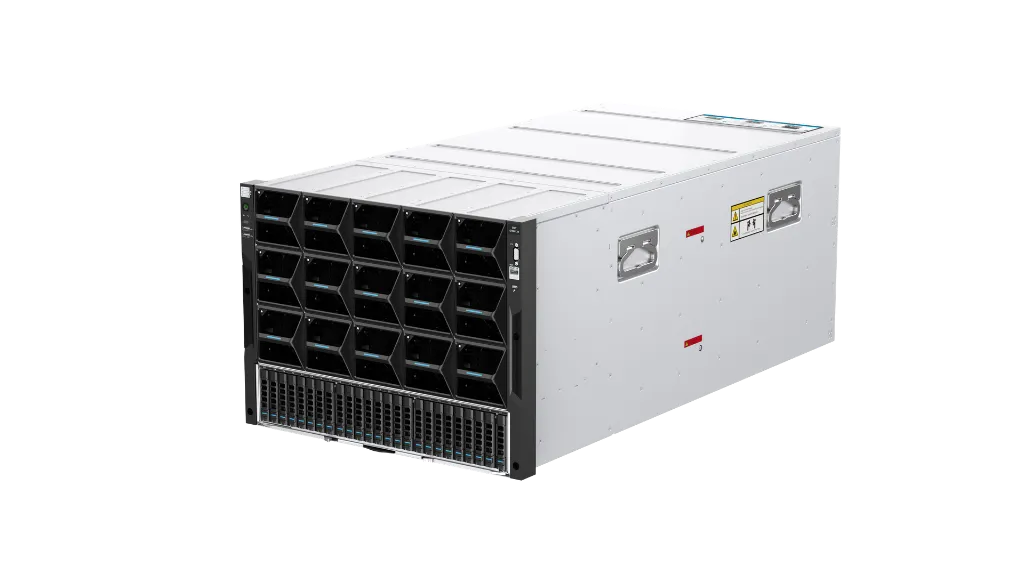

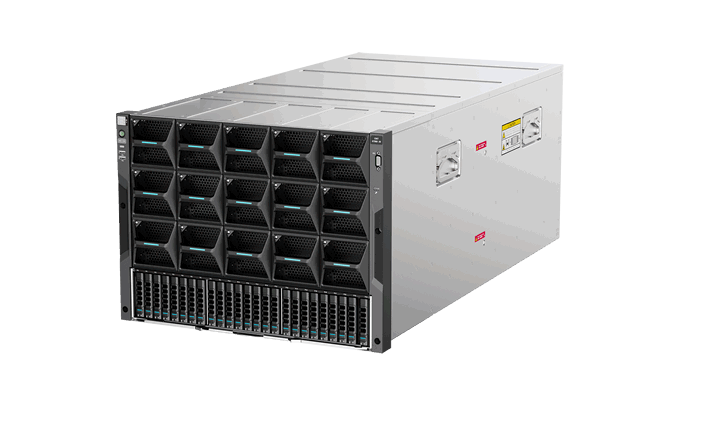

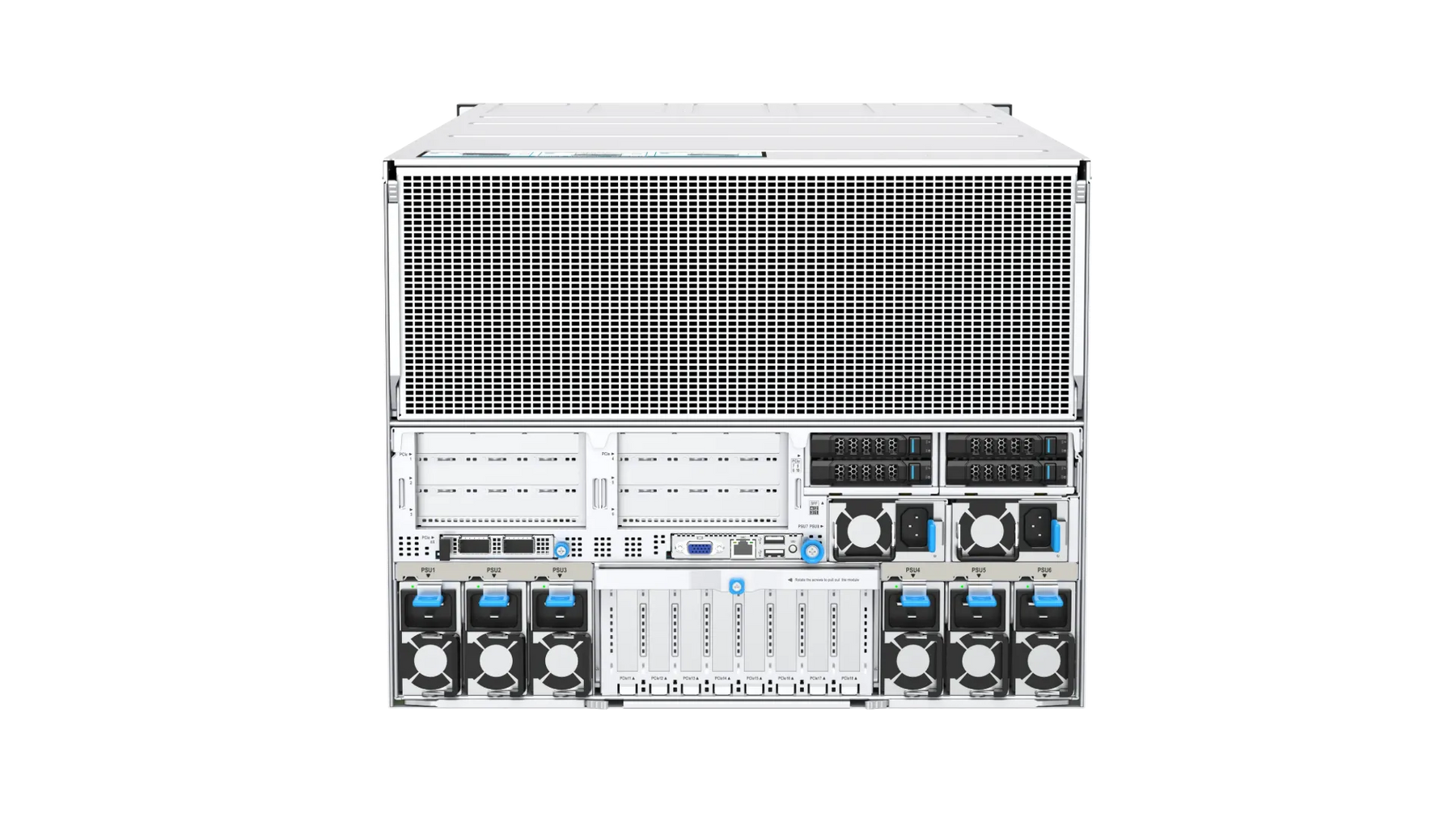

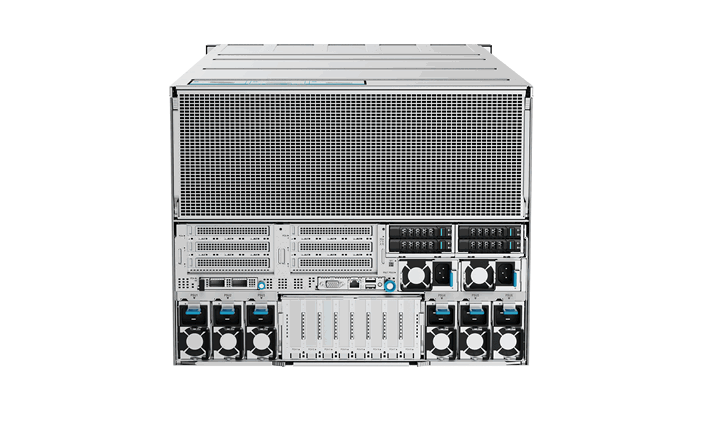

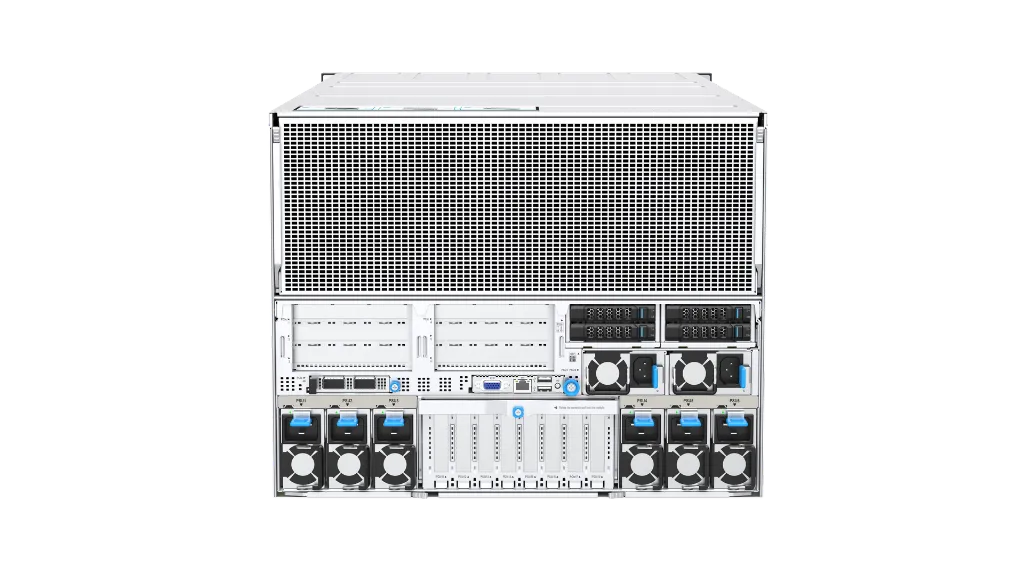

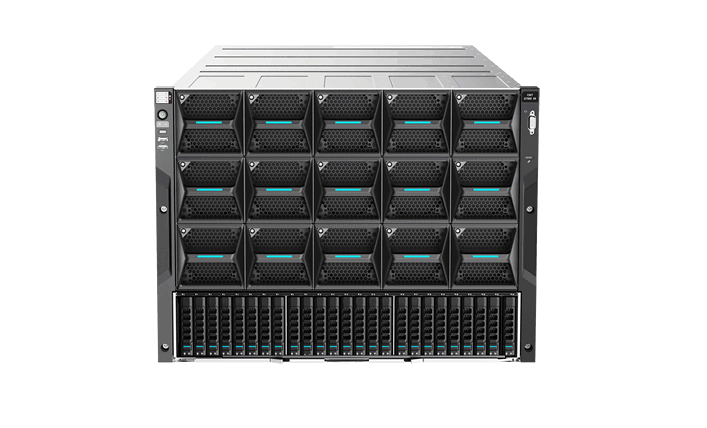

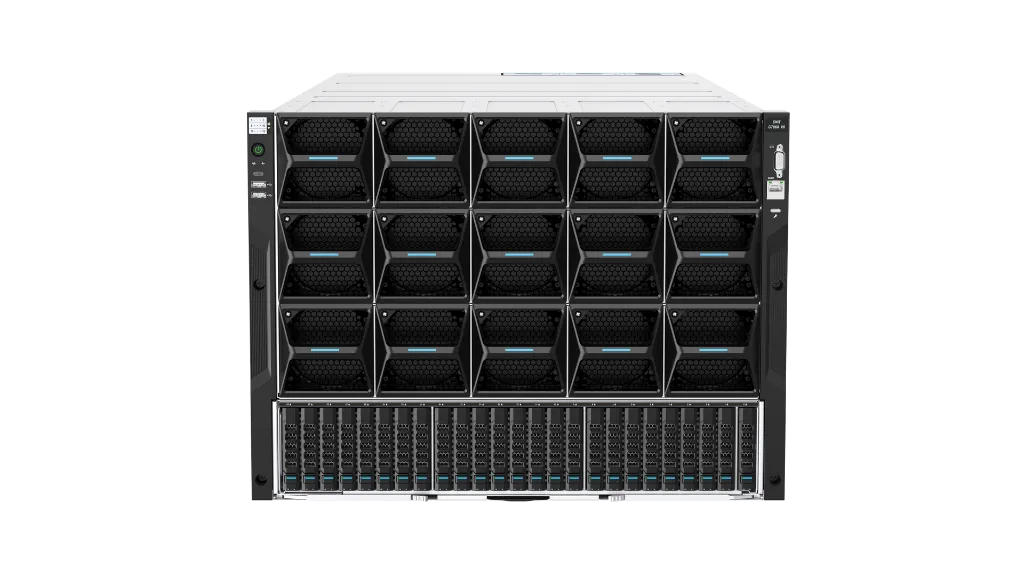

G7868 X6 server

The G7868 X6 server is compatible with the new HGX 8-GPU module or the standard OAM2.0 module. The modular design significantly enhances the cooling efficiency and maintainability of the entire machine, allowing the powerful performance of the GPU to be fully utilized. The main control unit supports up to 2 CPUs, and i

The G7868 X6 server is compatible with the new HGX 8-GPU module or the standard OAM2.0 module. The modular design significantly enhances the cooling efficiency and maintainability of the entire machine, allowing the powerful performance of the GPU to be fully utilized. The main control unit supports up to 2 CPUs, and in combination with the 8-channel 5600MT/s DDR5 Memory technology, it provides a bandwidth increase of up to 50% for users. With the support of 15 PCIe5.0 slots and up to 29 hard drive slots, it meets the requirements of various computing architecture solutions and further improves the system's computing performance. It can be applied to various large computing scenarios such as large-scale training, high-performance computing (HPC), and large data centers.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

gpu_moduleGPU-GPU module (compatible with NV module and universal OAM2.0 module)
processorMaximum support 2 cpus, a single maximum 64 cores, Maximum power 385W
memorySupports up to 32 DDR5 memory slots at rates up to 5600MT/s, supports RDIMMs or LRDIMMs, and has a capacity of up to 8TB; Support CXL 1.1, support HBM technology
storage_controllerIntegrated 6Gb/s SATA controller; Optional 12Gb/s SAS HBA and 12Gb/s SAS RAID controller
hard_disk_expansionSystem SAS/SATA/NVMe disk configuration: Supports a maximum of 29 2.5-inch hard disks, of which a maximum of 12 NVMe hard disks and two onboard M.2
pcie_expansionSupports up to 18 PCIe 5.0 expansion slots Supports up to 14 X16 PCIe 5.0 standard slots (6 from CPU, 8 from Switch) Supports up to 6 X16 PCIe 5.0 FH standard slots Supports 1 OCP3.0 onboard slot
management_softwareIntegrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
networkSupport one OCP3.0 NIC, optional 1/10/25/50/100/200/400GE PCIe standard NIC
securitySupport chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
fanFan Support 15 high-performance fans, N+1 hot-swappable redundant fans
power_supplySupport six 3500W 54V platinum power supplies (4200W/5200W in the future), optional expansion of two 2000W/2400W/2700W/3200W 12V platinum power supplies, optional titanium power supply *, support N+N redundancy /N+1 redundancy
operating_temperature5 ° C ~ 40 ° C (The operating temperature can be affected by different configurations)
appearance_chassis_size8U chassis 352mm (H) × 447mm (W) × 917mm (depth)
modelG7868 X6 server
