Home/Products/IE2112-8G4S-K
IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K IE2112-8G4S-K

PORTOWER product

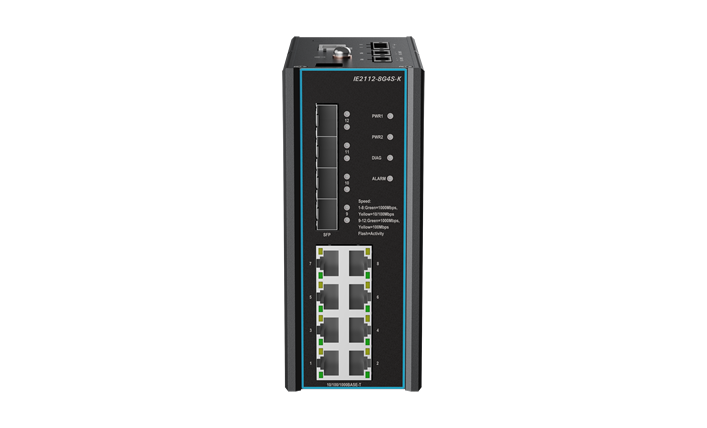

IE2112-8G4S-K

IE2112 series industrial switches, positioning layer 2 network management industrial switches, is a new generation of industrial switches developed in accordance with the requirements of industrial specifications. Based on the development of industrial hardware device support platform, the reliability of components is

IE2112 series industrial switches, positioning layer 2 network management industrial switches, is a new generation of industrial switches developed in accordance with the requirements of industrial specifications. Based on the development of industrial hardware device support platform, the reliability of components is significantly higher than that of commercial devices under the same circumstances. Adopts fanless natural heat dissipation mode, the working temperature range can reach -40~70℃, supports lightning protection, surge protection, can adapt to a variety of outdoor harsh environment. It can meet the requirements of various industrial Internet application scenarios.

Request a quotation: Some commercial or technical fields (dimensions, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

exchange_capacity24Gbps
packet_forwarding_rate17.8 Mpps
overall_dimensions_length_width_high150 x63. 4 x126mm
weight≤ 1.5 kg
console_port1
service_port_description8 Gigabit electrical ports, 4 Gigabit optical ports
input_voltageDC:24/48V
power_consumption_static< 10W
power_consumption_full_load< 15W
port_lightning_protectiondifferential touch ± 1KV, Common mode ± 4KV
working_ambient_temperature-40 ~ 70℃
working_environment_relative_humidity_non_condensation5% ~ 95%(no condensation)
port_featuresSupports IEEE 802.3x flow control Supports broadcast/multicast/unicast storm suppression Supports port auto-negotiation Supports rate and duplex setting Supports MDI auto-flipping Supports link-delay MTU VCT AdminDown Port isolation Port rate limiting and storm suppression LLDP
link_aggregationSupports static aggregation Supports LACP dynamic aggregation
mac_address_tableSupports MAC address learning, aging, and migration Supports static MAC addresses Supports black hole MAC addresses Supports setting the maximum number of MAC addresses to be learned on a port
vlan4K VLAN access, trunk, and hybrid modes Protocol VLAN QinQ
dhcpIPv4 DHCP Client IPv4 DHCP Snooping Option82
multicast_protocolIGMP Snooping IGMP Snooping Fast-leave IGMP Snooping Group-policy drop-unkown Support multicast VLAN (SVGL mode)
loop_protectionSupport STP/RSTP/MSTP Support Root Guard Support BPDU protection Support TC protection Support port Single-port/multi-port loop detection Support ERPS ring protocol
qos_aclSupports FF-SERv QoS Supports flexible queue scheduling algorithm, Supports multiple modes such as SP, WRR, and SP+WRR Packet 802.1p and DSCP priority re-marking IPv4 ACL Ingress ACL ACL Stream speed limit
port_mirroringPort mirroring Flow mirroring Remote mirroring
security_featuresSupports hierarchical user management and password protection Supports 802.1X Supports MAC authentication Supports Radius Supports local authentication Supports login whitelist Supports SSH 2.0 Supports IP Source Guard Anti-DOS attack
management_and_maintenanceSupports File Transfer Protocol (FTP) loading and upgrading Trivial File Transfer Protocol (TFTP) loading and upgrading Supports command line interface (CLI) configuration Support Console local configuration Support Telnet, SSH and other remote configuration Support Web graphical configuration. HTTPS Simple Network Management Protocol (SNMP) SNMP V3 RMON groups 1/2/3/9 System logs and trap NTP and SNTP Ping and Tracert
modelIE2112-8G4S-K

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
