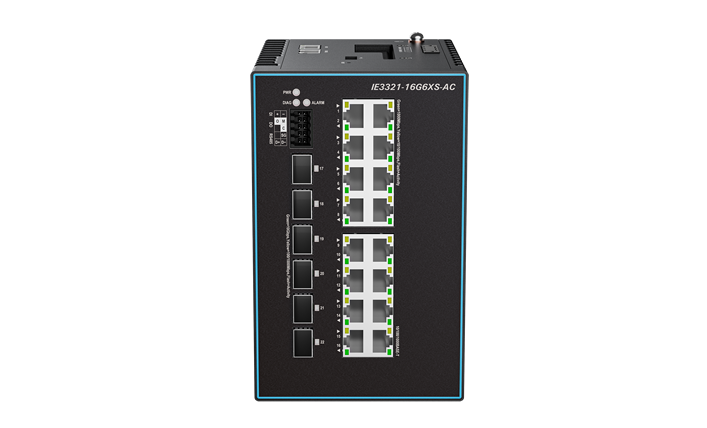

IE3321-16G6XS（AC）

IE3321 series industrial switch, positioning three-layer network management industrial switch switch, adopts the guide rail design, with a variety of models, to provide users with gigabit access and the highest uplink rate of ten gigabit, support the three-layer protocol required by the park scene, based on industrial

IE3321 series industrial switch, positioning three-layer network management industrial switch switch, adopts the guide rail design, with a variety of models, to provide users with gigabit access and the highest uplink rate of ten gigabit, support the three-layer protocol required by the park scene, based on industrial hardware device support platform development, the reliability of components is significantly higher than that of commercial devices under the same circumstances. Adopts fanless natural heat dissipation mode, the working temperature range can reach -40~70℃, supports lightning protection, surge protection, can adapt to a variety of outdoor harsh environment. It can meet the requirements of various industrial Internet application scenarios.

Request a quotation: Some commercial or technical fields (dimensions, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

exchange_capacity152Gbps
packet_forwarding_rate113Mpps
overall_dimensions_length_width_high135*104*155mm
weight≤ 3.5 kg < / td >
console_port1 RJ45 console
management_ethernet_port1 Gigabit management network port
usb_port1 usb2.0 interface
service_port_description16 Gigabit electrical ports, 6 10-gigabit optical ports
input_voltageAC: 100-240Vac, 50/60Hz
power_consumption_static< 25W
power_consumption_full_load< 40W
port_lightning_protectiondifferential touch ± 1KV, Common mode ± 4KV
working_ambient_temperature-40 ~ 70℃
working_environment_relative_humidity_non_condensation5% ~ 95%(no condensation)
port_featuresSupports IEEE 802.3x flow control Supports broadcast/multicast/unicast storm suppression Supports port auto-negotiation Supports rate and duplex setting Supports MDI auto-flipping Supports link-delay MTU VCT AdminDown Port isolation Port rate limiting and storm suppression LLDP
link_aggregationSupports static aggregation Supports LACP dynamic aggregation Supports unicast MLAG distributed aggregation
mac_address_tableSupports MAC address learning, aging, and migration Supports static MAC addresses Supports black hole MAC addresses Supports setting the maximum number of MAC addresses to be learned on a port
vlanSupport 4K VLAN Support access, trunk, and hybrid mode Support protocol VLAN, subnet VLAN, MAC VLAN Support Guest VLAN and Private VLAN Support for basic QinQ, Flexible QinQ, and VLAN mapping Support for GVRP/MVRP dynamic VLAN registration protocol
dhcpSupport IPv4/IPv6 DHCP Client Support IPv4/IPv6 DHCP Snooping Support IPv4/IPv6 DHCP Relay Support IPv4/IPv6 DHCP Server Option82
arpSupports static entries Supports dynamic entries Supports gratuitous ARP Supports ARP Detection Supports ARP proxy
routing_protocolIPv4 and IPv6 static routes Equal-cost routes and policy-based routes OSPFv2 and OSPFv3 RIP and RIPNG ISIS uRPF
multicast_protocolIGMP/MLD Snooping IGMP/MLD Snooping Fast-leave IGMP/MLD Snooping Group-policy drop-unkown Supports multicast VLAN (SVGL mode) Supports IGMP and MLD Supports IPv4/Pv6 PIM SM
loop_protectionSupport STP/RSTP/MSTP Support Root Guard Support BPDU protection Support TC protection Support port Single-port/multi-port loop detection Support ERPS ring protocol
reliabilitySmartLink MonitorLink BFD VRRP
qos_aclSupports FF-SERv QoS Supports flexible queue scheduling algorithm, Supports multiple modes such as SP, WRR, and SP+WRR The 802.1p and DSCP priority re-marking of packets Supports L2, L3, and L4 ACLs Supports IPv4 ACLs Supports IPv6 ACLs Ingress ACL< br /> ACL traffic rate limiting User-defined ACL< br /> Time range ACL
port_mirroringPort mirroring Flow mirroring Remote mirroring
security_featuresSupports hierarchical user management and password protection Supports 802.1X Supports MAC authentication Supports Radius Supports local authentication Supports login whitelist Supports SSH 2.0 Supports IP Source Guard Anti-DOS attack
management_and_maintenanceSupports File Transfer Protocol (FTP) loading and upgrading Trivial File Transfer Protocol (TFTP) loading and upgrading Supports command line interface (CLI) configuration Support Console local configuration Support Telnet, SSH and other remote configuration Support Web graphical configuration. HTTPS Simple Network Management Protocol (SNMP) SNMP V3 RMON groups 1/2/3/9 System logs and trap NTP and SNTP 1588 (PTP) Ping and Tracert Hot patch Third-party applications
modelIE3321-16G6XS（AC）
