PORTOWER product

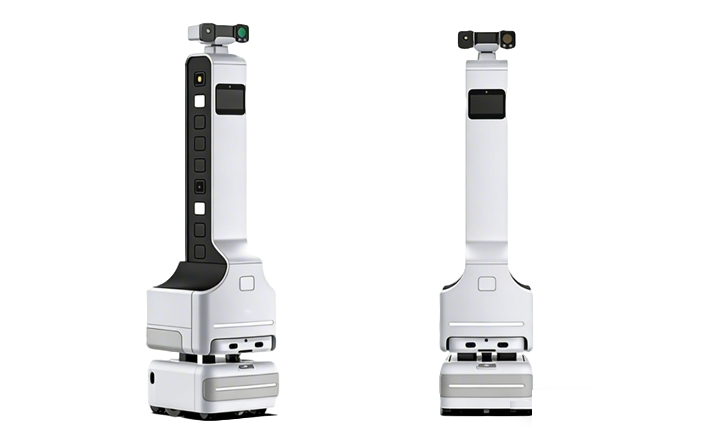

Inspection robot

This is a solution-oriented robot that integrates various types of sensors, is equipped with a high-performance industrial control computer and a touch screen,

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

hardwareOptional Module | NVIDIA Jetson AGX Orin 32G Module

systemLinux Ubuntu

cpu8 cores (2 clusters, 4 cores per cluster), maximum frequency: 2.2 GHz

gpuNVIDIA Ampere architecture, CUDA cores: 1792, Tensor cores: 56

ai_computing_power_int8200 TOPS(32GB)

memory_lpddr532GB 256-bit

storageOptional NVMe 2280 solid-state drive from 128GB to 1TB (module comes with 64GB eMMC)

usb5x USB 3.2 Type-A, 1x USB 2.0 Type-C (for burning)

ethernet4x 10/100/1000BASE-T Ethernet, 1x 10/100/1000/10000 BASE-T Ethernet

can4x CAN FD (isolated), supporting ISO 11898-1:2015, maximum baud rate: 1 Mbps

rs4856x RS485 (isolated), TA/EIA-485A, maximum baud rate: 250 Kbps

didoDIH x2/DIL x2, DOH x2/DOL x2

display_interfaceHDMI 2.1 x 1, up to 4K60Hz resolution

audio_input_outputMIC x 1, LINE OUT x 1

sensorsTemperature sensors, humidity sensors, gas sensors, noise sensors, equipment acoustic sensors

touchscreen_size7 inches, capacitive touch

touchscreen_resolution_frequency≥ 1024*768, ≥ 60Hz

face_recognition_cameraEquipped with a face recognition camera (auto-focus, ≥ 2 million pixels)

motion_performanceAutomatic obstacle avoidance | Supported

emergency_brakingSupported

stabilityEquipment mobile tilt angle ≤ 10°

airframe_power_supplyBattery | Chassis power supply - Lithium iron phosphate battery

standby_battery_life≥ 10H

full_load_endurance_time≥ 4H

input_voltageDC 24V

detachable_moduleCamera module | Flexible configuration, supports 4-8

equipment_supplementary_lightingFlexible configuration, supporting 4 to 8 units

cloud_platform_camera1 unit

overall_dimensionsLength: 560mm, Width: 450mm, Height: 1810mm (including chassis)

working_environmentTemperature: 0 to 50℃; Humidity: 0 to 90% RH (no condensation)

modelInspection robot

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
