PORTOWER product

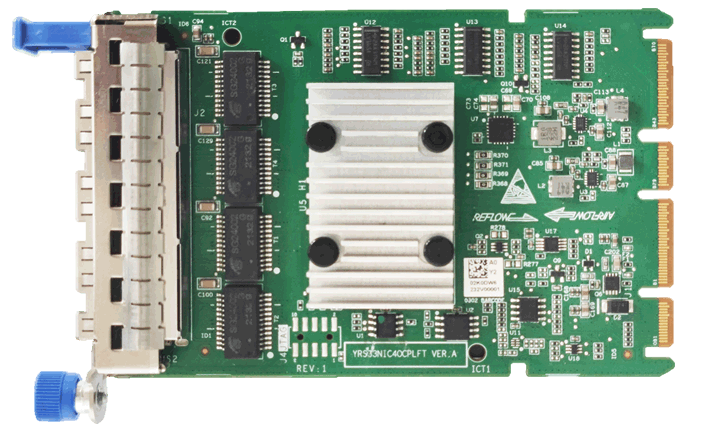

N1142P-4T-X1 Gigabit 4 power OCP i350

N1142P-4T-X1 Gigabit 4 power OCP i350. Technical specifications and OEM quotation support are available from PORTOWER.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

network_card_informationNIC Model | N1142P-4T-X1

nic_typeOCP card

network_card_rate1GE

port_type4*RJ45

chip_typeintel I350

pcie_busPCI Express v2.1 (5.0GT/s)

basic_featuresController | Intel I350-AM4

cable_mediaCopper cable

copper_cable_type10Base-T Category 3,4,5,5 E or6: Maximum 100m 100Base-Tx Cat5, Cat 5E and Cat6: Maximum 100m 1000Base-T Cat 5E and Cat6: Max. 100m

baffle_height*

power_consumption_max5W

port_rate10/100/1000Mbps

power_supplyOCP3.0 Power supply

operating_temperature0-50℃

compatible_operating_systemWindows 10 / Linux, Windows Server2019/2016/2012/2008/2003 and 8.1/8

technical_parametersEthernet Power Management | No

pxe_supportYes

dpdkYes

jumbo_frame_supportYes

ncsi_supportYes

wol_supportYes

fcoeNo

pci_sig_sr_iov_supportYes

vmdqYes

flow_control_supportYes

modelN1142P-4T-X1 Gigabit 4 power OCP i350

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
