PORTOWER product

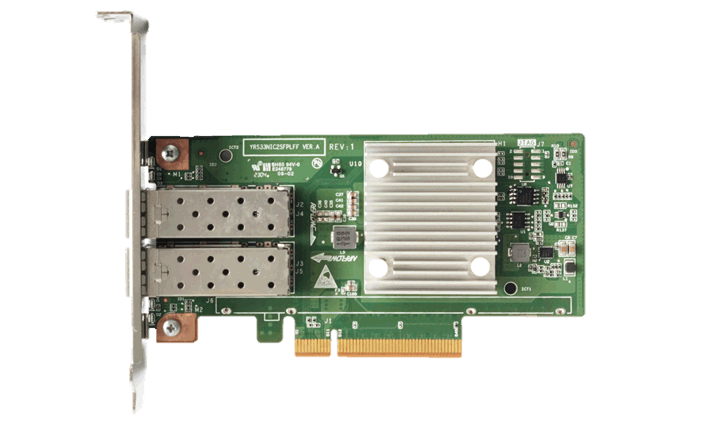

N2183-2F-X1 10G 2 optical FTX710

N2183-2F-X1 10G 2 optical FTX710. Technical specifications and OEM quotation support are available from PORTOWER.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

network_card_informationNIC Model | N2183-2F-X1

nic_typeStandard card

network_card_rate10GE

port_type2*SFP+

chip_typeintel FTX710-BM2

pcie_busPCI Express v3.0 (8 GT/sec) X8

basic_featuresController | Intel FTX710-BM2

cable_mediaOptical Fiber

fiber_type10GBase-SR, 10GBase-LR, 10GBase-Cu

baffle_heightFull height and half height configuration

power_consumption_max7.4 W

port_rate10/1 Gb/s

power_supplyPCIe Power supply

compatible_operating_systemWindows 10 / Linux, Windows Server2019/2016/2012/2008/2003 and 8.1/8

technical_parametersEthernet Power Management | Yes

pxe_supportYes

sfi_kr_kx4_xaui_sgmii_supportYes

jumbo_frame_supportYes

traffic_shaping_supportYes

data_center_protocol_acceleration_supportYes

network_protocol_accelerationTCP/UDP/IP offload

virtual_machine_sr_iov_supportYes

fcoeNo

modelN2183-2F-X1 10G 2 optical FTX710

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
