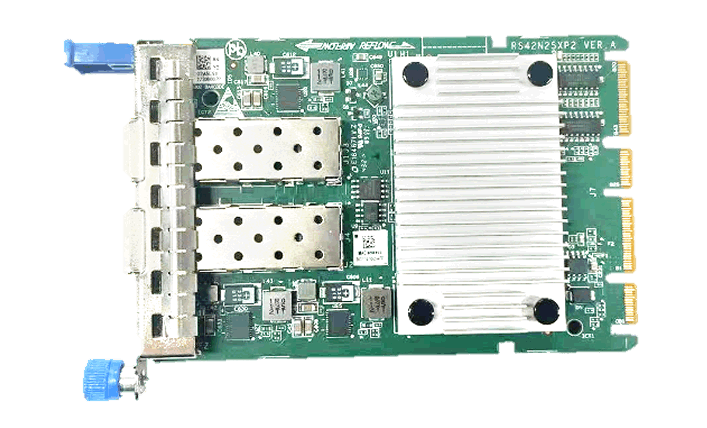

N2284P-2F-X1 25G 2 Optical E810

N2284P-2F-X1 25G 2 Optical E810. Technical specifications and OEM quotation support are available from PORTOWER.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

network_card_informationNIC Model | N2284P-2F-X1

nic_typeOCP network card

network_card_rate25GE

port_type2*25G SFP28

chip_typeintel E810

pcie_busOCP3.0 SFF

basic_featuresController | Intel EYE810XXVAM2

cable_mediaOptical Fiber

fiber_type25GBase-SR, 25GBase-LR, 25GBase-Cu

baffle_height*

power_consumption_max9.2 W

port_rate1/10/25 Gb/s

power_supplyOCP3.0 Power supply

compatible_operating_systemCompatible with more operating systems: Windows 10; Windows Server2008/R2, 2012/R2, 2016/R2, 2019/R2; RHEL 6.x/7.x or newer; SUSE 11.x/12.x or later; FreeBSD 10.x/11.x; Ubuntu 14.x/16.x or newer; linux Kernel 4.x/5.x or newer

technical_parametersPXE support | Yes

dpdkYes

nic_bondingYes

iscsi_supportYes

wol_supportYes

fcoeNo

vmdq_sr_iovYes

ipsec_load_sharingYes

rdmaYes

modelN2284P-2F-X1 25G 2 Optical E810
