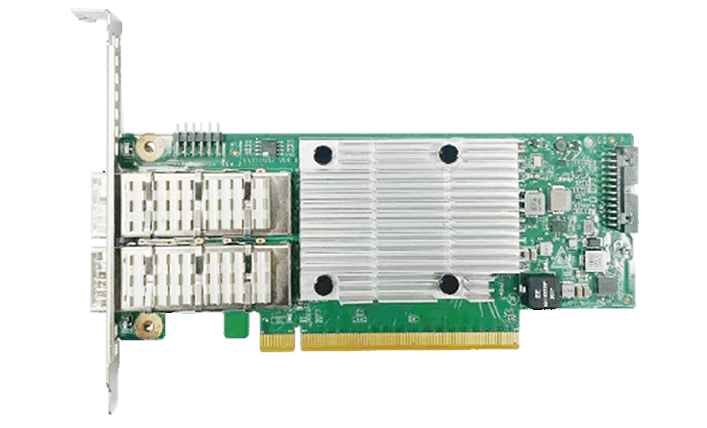

N3194-2Q-X1 100G 2 Optical E810

N3194-2Q-X1 100G 2 Optical E810. Technical specifications and OEM quotation support are available from PORTOWER.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

network_card_informationNIC Model | N3194-2Q-X1

nic_typePCIE Standard network card

network_card_rate100GE

port_type2*100G QSFP28

chip_typeintel E810

pcie_busPCI Express v4.0x16

basic_featuresController | Intel E810

cable_mediaOptical Fiber

fiber_type100GBASE-CR4/KR4, CAU-4, 100GBASE-CR2/KR2, 100Gaui-2,100GAUI-4; 50GBASE-CR2/KR2, 50GBASE-CR/KR,50GAUI-1/-2,LAUI-2; 25GBASE-CR/KR, 25G-AUI C2C/C2M,25GBASE-CR1/KR110GBASE-KR, 10G SFI/SFP+

baffle_heightFull height and half height configuration

power_consumption_max25W

port_rate10/25/50/100 Gb/s

power_supplyPCIe Power supply

compatible_operating_systemCompatible with more operating systems: Windows 10; Windows Server2008/R2, 2012/R2, 2016/R2, 2019/R2; RHEL 6.x/7.x or newer; SUSE 11.x/12.x or later; FreeBSD 10.x/11.x; Ubuntu 14.x/16.x or newer; linux Kernel 4.x/5.x or newer

technical_parametersPXE support | Yes

dpdkYes

network_virtualizationSR-IOV, VxLAN

iscsi_supportYes

wolYes

fcoe_supportNo

rdmaYes

ncsiNo

vmdqYes

modelN3194-2Q-X1 100G 2 Optical E810
