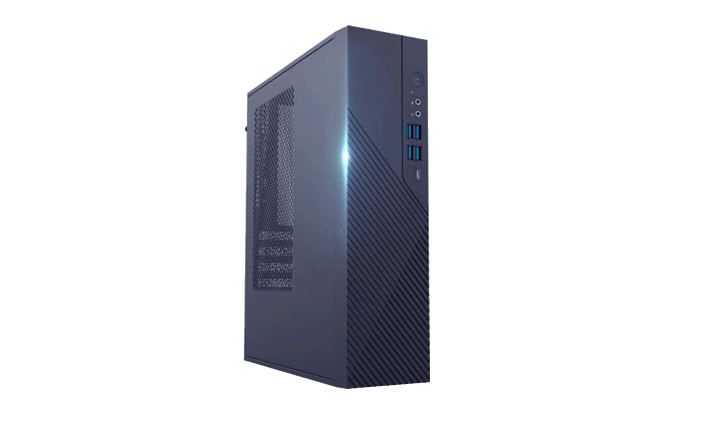

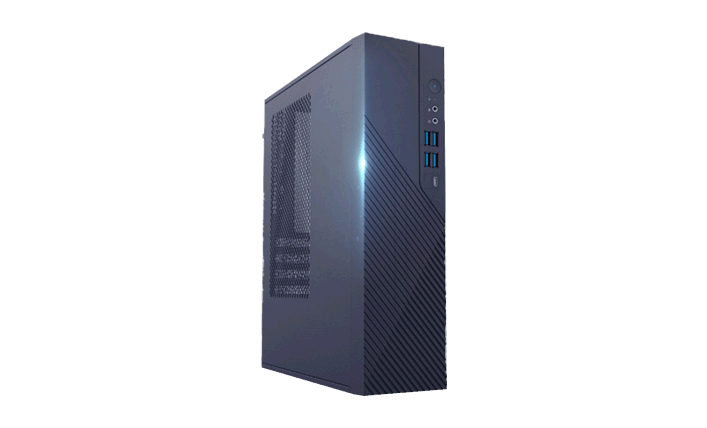

P4232 Desktop

The P4232 desktop is based on domestic CPU, adopts four-channel DDR4 high-speed memory design, and is equipped with NVMe SSD. The product uses a 9-liter vertical small chassis, the appearance is simple and fashionable. The system adopts domestic independent security firmware, supports domestic operating system, adapate

The P4232 desktop is based on domestic CPU, adopts four-channel DDR4 high-speed memory design, and is equipped with NVMe SSD. The product uses a 9-liter vertical small chassis, the appearance is simple and fashionable. The system adopts domestic independent security firmware, supports domestic operating system, adapates domestic browser, domestic office software, audio and video player software, graphics processing and other mainstream upper-layer application software, and supports Windows operating system. Meet users' daily office, OA, and transaction processing requirements.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

processorX86 multi-core processor (8Core/3.0GHz)
memorySupport 4 x DDR4 UDIMMs, expandable up to 64GB
storageM.2 Port 512GB SSD, compatible with 2242, 2280 models, expandable to 2TB One 2.5-inch mechanical hard disk and one 3.5-inch mechanical hard disk
displayBuilt-in integrated video card, can support independent video card
external_display_interface1 HDMI output interface; 1 VGA output port; 1 DP output interface
network_interface1 Gigabit electrical port (RJ45), 1000/100/10Mbps, support network wake-up
usb_interfaceSix USB3.0 ports (Type A) rear Two USB3.0 ports (Type A) front Two USB2.0 ports (Type A) front One USB3.0 port (Type C) front
serial_portSupport 9-pin RS232 serial port
audio_interfaceA front headphone jack and a microphone port Rear audio interface *3 (output/input/microphone)
expansion_interfaceReserved extension WIFI6& BT5.0, antenna built-in
pcie_expansion_portOne PCIE x16 port One PCIE x8 port One PCIE x4 port PCIE4.0
power_supplyUp to 350W TFX power supply
dimensions_length_width_height_mm341mm× 92mm× 290mm
working_ambient_temperature0℃~+40℃
working_humidity10 ~ 90%RH, non-condensing;
modelP4232 Desktop
