P6600 Series HBA controller card - P6600-16I

PORTOWER product

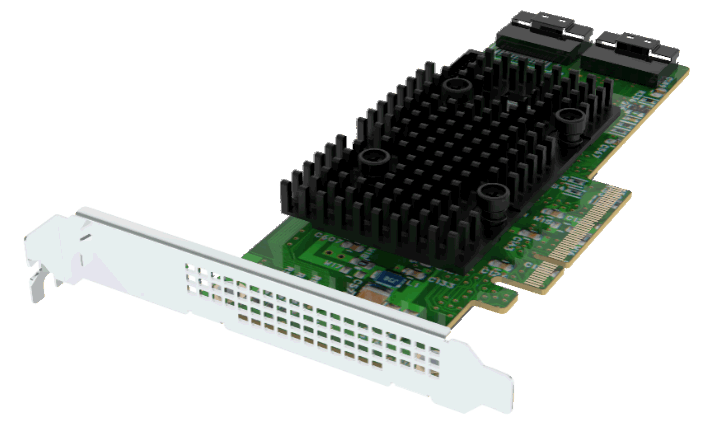

P6600 Series HBA controller card - P6600-16I

P6600 series storage control card based on the latest chip, stable function, powerful performance.......

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

product_modelP6600 Series

control_card_typePCIe Card

interface_rate24G SAS; 6G SATA; 16G NVMe

support_raid_levels0/1/5/10

number_of_supported_portsUp to 16 internal or external interfaces

number_of_supported_logical_disks64

support_hard_disk_interface_typeSAS/SATA/NVMe

supported_strip_size_kb8/16/32/64/128/256/512/1024

maximum_number_of_hard_disks_supported238SSDs/HDDs

operating_systemMicrosoft Windows Server, Windows10, Red Hat Enterprise Linux, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi and open-source Linux drivers/inbox drivers

out_of_band_managementPBSI; MCTP and PLDM/RDE

host_interfacePCIe4.0x8

sas_sata_nvme_port16 internal

cacheNo

modelP6600 Series HBA controller card - P6600-16I
