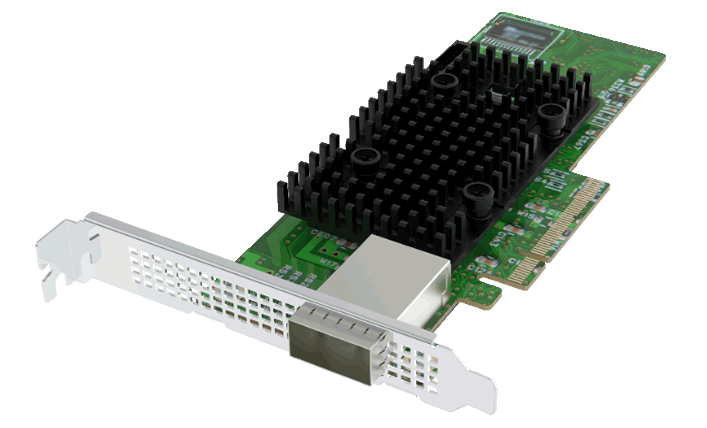

P7600 Series RAID controller card -P7608-8e

PORTOWER product

P7600 Series RAID controller card -P7608-8e

P7600 series storage controller card based on the latest chip, stable function, powerful performance, PCIe4.0 interface supported, compared with the previous generation product bandwidth......

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

product_modelP7600 Series

control_card_typePCIe Card

interface_rate24G SAS; 6G SATA; 16G NVMe

support_raid_levels0/1 (Triple) /5/6/10 (Triple) /50/60

auto_cache_module_sizeMax. 4GB

number_of_supported_portsUp to 16 internal or external interfaces

number_of_supported_logical_disks64

support_hard_disk_interface_typeSAS/SATA/NVMe

supported_strip_size_kb8/16/32/64/128/256/512/1024

maximum_number_of_hard_disks_supported238SSDs/HDDs

operating_systemMicrosoft Windows Server, Windows10, Red Hat Enterprise Linux, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi and open-source Linux drivers/inbox drivers

out_of_band_managementPBSI; MCTP and PLDM/RDE

configuration_environment_for_functionUEFI; Legacy; OS

support_functionHot backup, RAID rebuild, copyback, RAID location migration, RAID level migration, RAID expansion, hard disk location, Scan hard disks, online firmware upgrade, hard disk data erasure, hard disk hot swap, Clear hard disk RAID information, data power failure protection, hard disk status switching, logical disk initialization, fault alarm, support for NVMe hard disks Build a RAID

host_interfacePCIe4.0x8

sas_sata_nvme_port8 external

cache4GB DDR4/3200MHz

modelP7600 Series RAID controller card -P7608-8e

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
