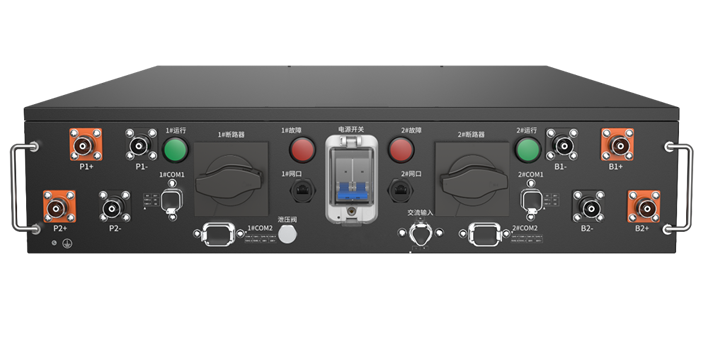

PDUB15-25 High-pressure box

Yunjian Information offers customized and manufacturing services for energy storage high-voltage boxes. The product types include 52 strings, 104 strings, etc. The protection grade

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

power_supply_modeSupports 220V or DC24V power supply Supports DC24V output

communication_interfaceSupports modbus RTU/TCP protocols Supports the IEC104 protocol Support CAN protocol Support 61850 protocol

control_functionSupports automatic opening and closing control of external DC circuit breakers Integrated battery cluster terminal voltage, current and insulation status detection function

size800mm*160mm*1000mm

protection_gradeIP65, suitable for harsh environments such as dampness and salt spray

protection_functionOvercurrent, overvoltage, undervoltage, short-circuit protection and insulation detection The circuit breaker integrates an under-voltage coil and automatically disconnects the main circuit in case of abnormality, reducing system risks

environmental_adaptabilityThe operating temperature range is -25℃ to 65℃, meeting the environmental requirements of outdoor energy storage power stations

modelPDUB15-25 High-pressure box

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
