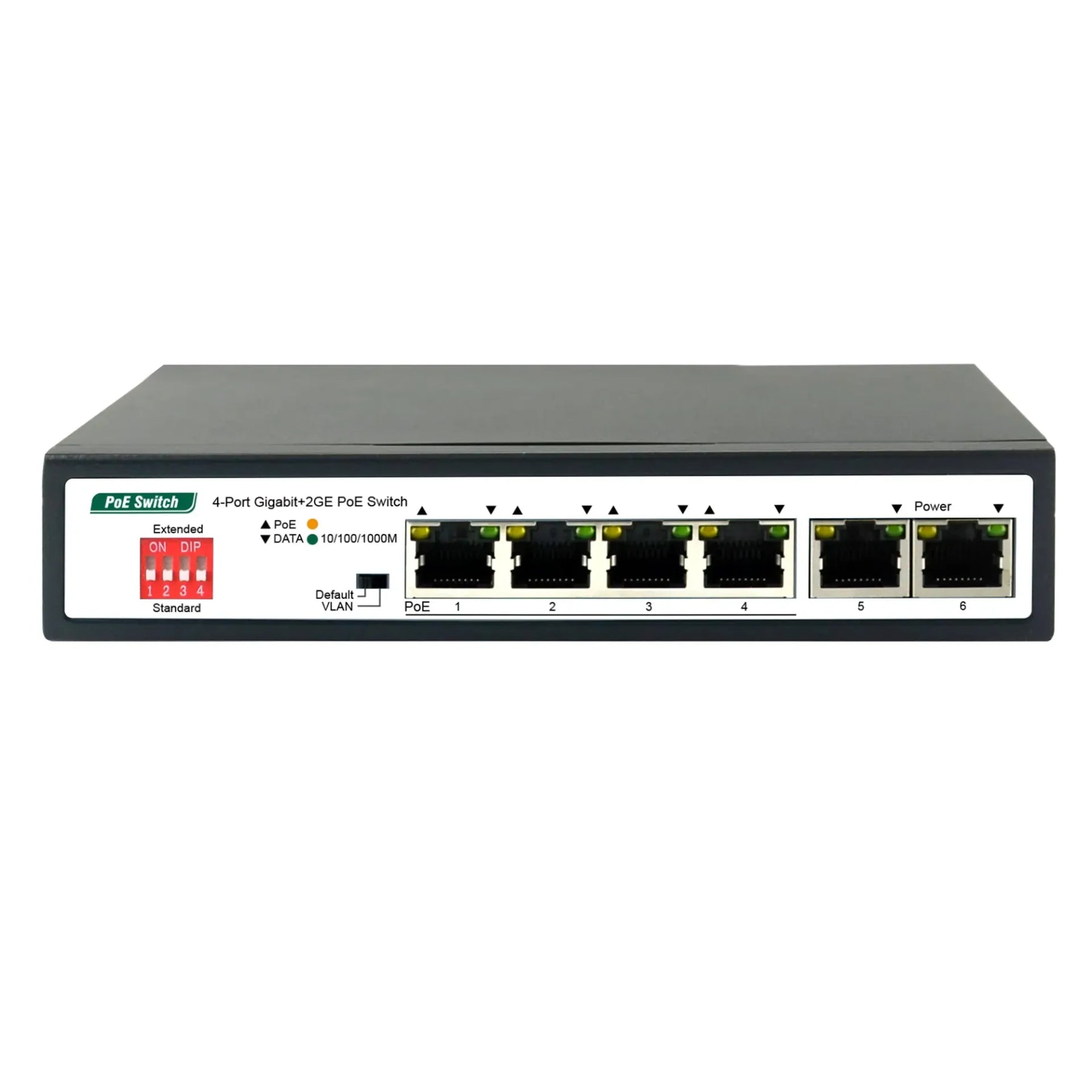

PM3006GSN_V3

PM3006GSN V3是6端口10/100/1000Mbps交换机，带4端口PoE（端口1~4）。同一电缆上的电力和数据传输可以将您的网络扩展到没有电源线或插座的地方，您可以在那里安装AP、IP摄像头或IP电话等设备。

6''设备

4*10/100/1000Mbps PoE RJ45端口

2*10/100/1000Mbps RJ45 端口

固定单AC电源设计

Request a quotation: Some commercial or technical fields (material, certification, voltage, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelPM3006GSN_V3

Dimensions(L*W*H)168*93*32mm

Weight<1kg

Interface4*10/100/1000Mbps PoE RJ45 Ports 2*10/100/1000Mbps RJ45 Ports

Switching Capacity12Gbps

Packet Forward Speed8.9Mpps

Operating Temperature0°C to 40 °C

Storage Temperature-40 to 70 ºC

Storage Humidity5 to 90% (non-condensing)

Power InputAC 100-240V 50/60Hz \ \ \

Dual power inputNO(Single power input)

Power hot-plugNO(fixed power supply）

Maximum Power ConsumptionExternal 40W / 72W(Optional)

PoE Power Output30W

PoE Power Budget35W / 65W(Optional)

MTBF(hours)>50000
