PORTOWER product

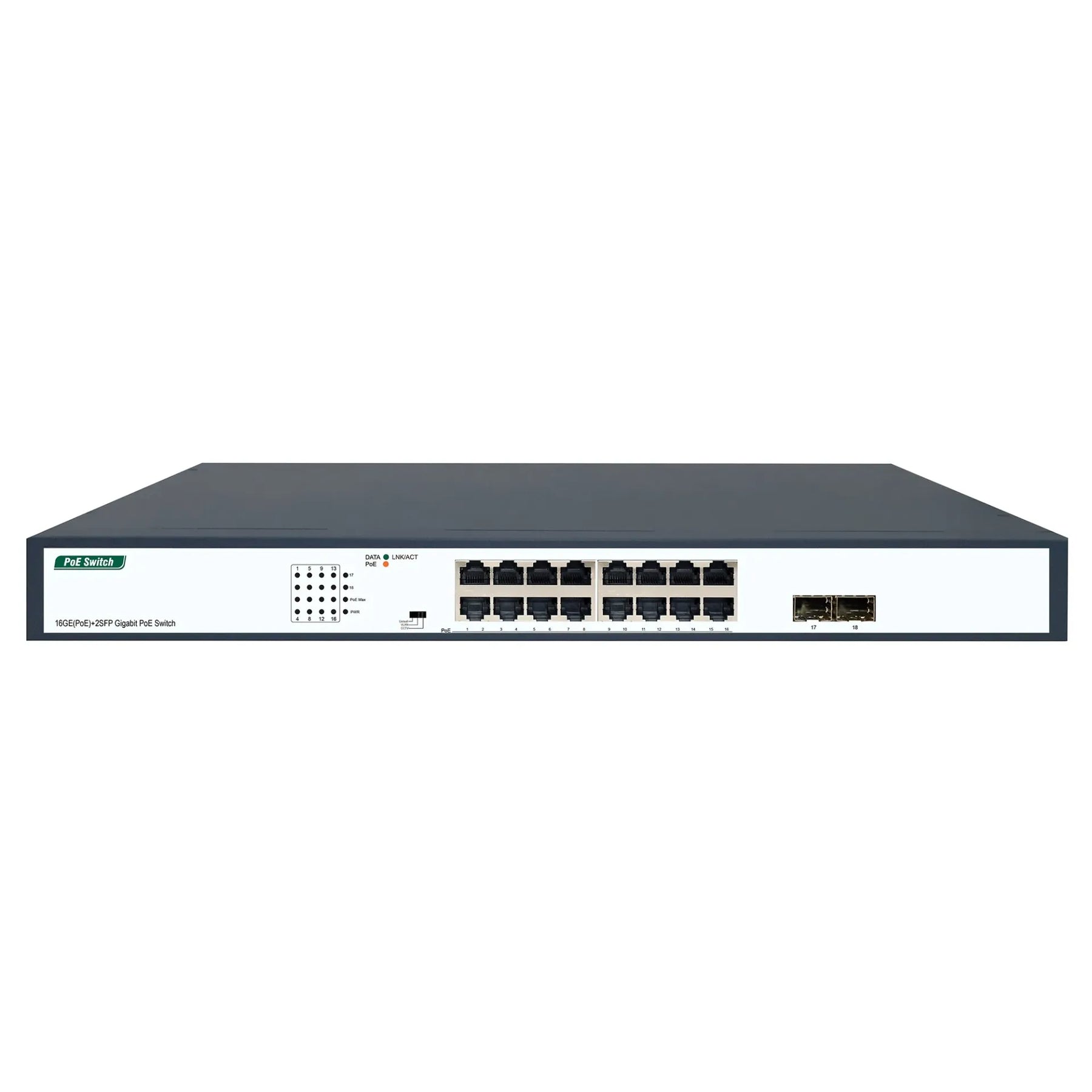

PM3018GSN_V4

PM3018GSN V4是UNIPOE自主研发的全千兆非管理PoE交换机。它提供16个千兆自适应RJ45端口和2个千兆SFP光模块插槽。每个RJ45端口支持MDI/MDIX自动翻转和线速转发。端口1至16具有PoE供电功能，符合IEEE802.3af/at标准。它们可以作为以太网电源设备，自动检测和识别符合标准的设备，并通过网线为其供电。

标准 1U 19'' 机架设备

16*10/100/1000Mbps PoE RJ45端口

2*1000Mbps SFP光口

固定单AC电源设计

Request a quotation: Some commercial or technical fields (material, certification, voltage, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelPM3018GSN_V4

Dimensions(L*W*H)440*207*44mm

Weight<4.2Kg

Interface16*10/100/1000Mbps PoE RJ45 Ports 2*1000Mbps SFP Slots

Switching Capacity36Gbps

Packet Forward Speed26.78Mpps

Operating Temperature0°C to 40 °C

Storage Temperature-40 to 70 ºC

Storage Humidity5 to 90% (non-condensing)

Power InputAC 100-240V 50/60Hz \ \ \

Dual power inputNO(Single power input)

Power hot-plugNO(fixed power supply）

Maximum Power Consumption260W

PoE Power Output30W

PoE Power Budget250W

MTBF(hours)>50000

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
