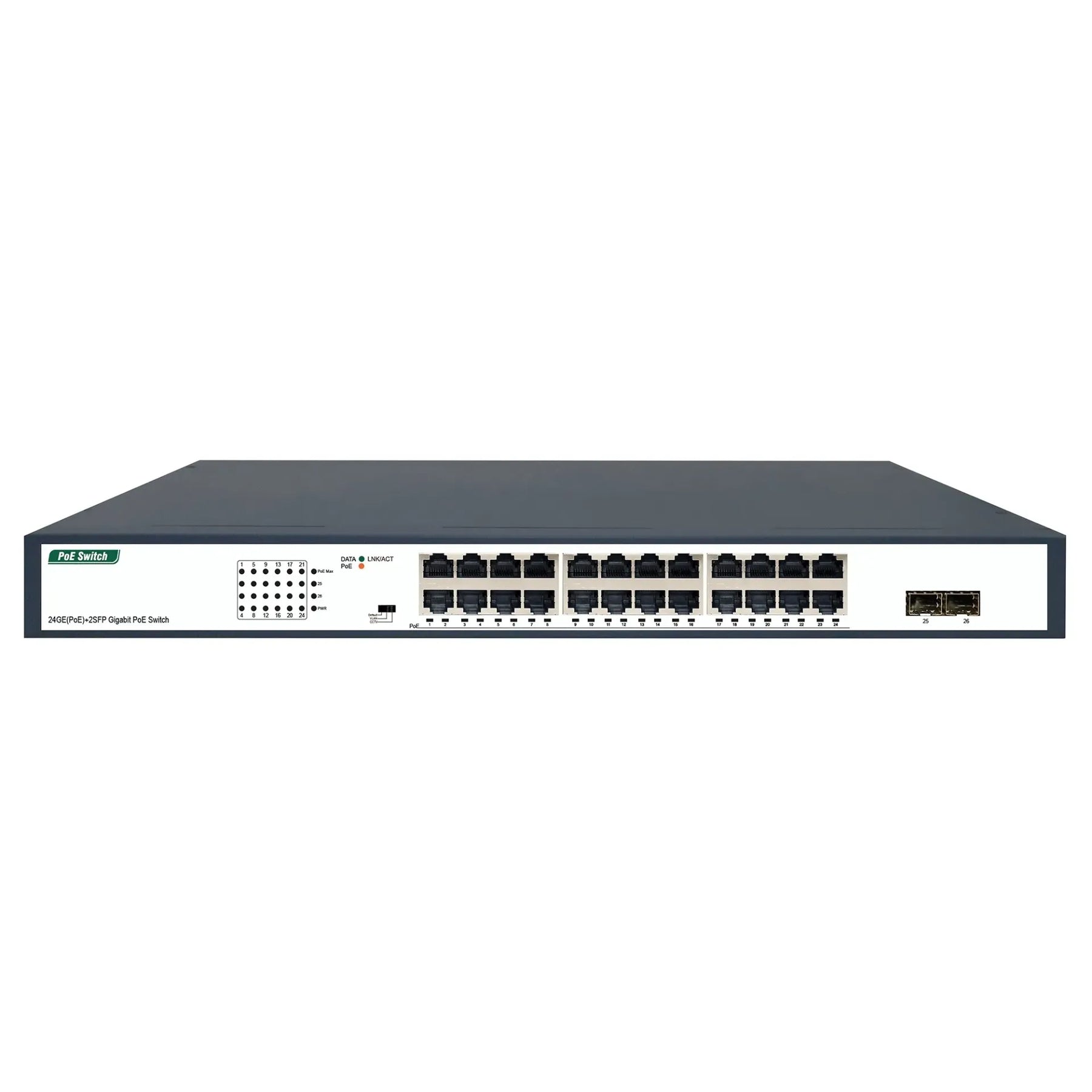

PM3026GSN_V4

PM3026GSN V4具有24个千兆自适应RJ45端口和2个千兆SFP光纤插槽。每个RJ45端口支持MDI/MDIX自动翻转和线速转发。端口1至24具有PoE供电功能，符合IEEE802.3af/at标准。它们可以作为以太网电源设备，自动检测和识别符合标准的设备，并通过网线为它们供电。

标准 1U 19'' 机架设备

24*10/100/1000Mbps PoE RJ45端口

2*1000Mbps SFP光口

固定单AC电源设计

Request a quotation: Some commercial or technical fields (material, certification, voltage, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelPM3026GSN_V4

Dimensions(L*W*H)440*207*44mm

Weight<5Kg

Interface24*10/100/1000Mbps PoE RJ45 ports 2*1000Mbps SFP slots

Switching Capacity52Gbps

Packet Forward Speed38.69Mpps

Operating Temperature0°C to 40 °C

Storage Temperature-40 to 70 ºC

Storage Humidity5 to 90% (non-condensing)

Power InputAC 100-240V 50/60Hz \ \ \

Dual power inputNO(Single power input)

Power hot-plugNO(fixed power supply）

Maximum Power Consumption280W / 400W(Optional)

PoE Power Output30W

PoE Power Budget250W / 370W(Optional)

MTBF(hours)>50000
