PORTOWER product

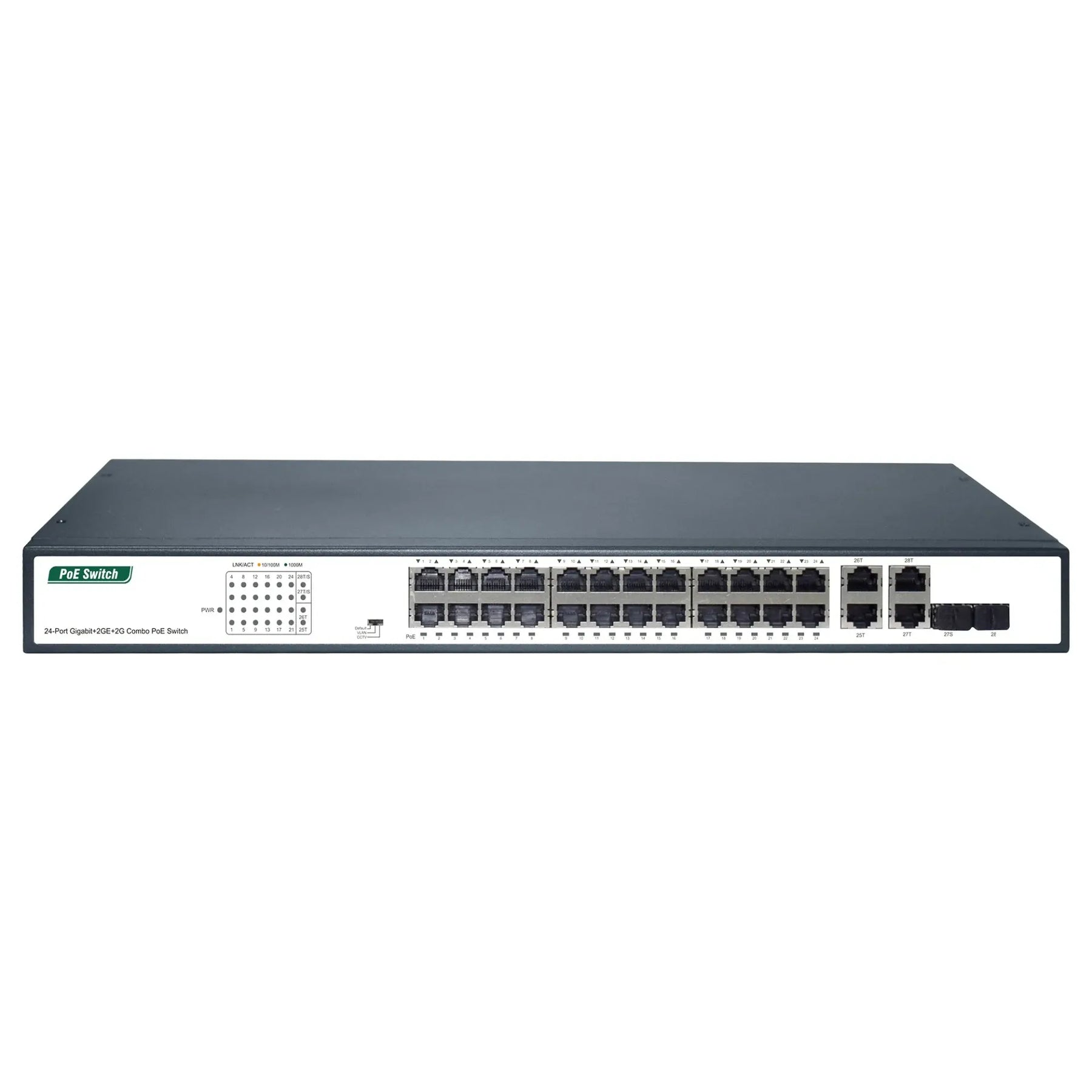

PM3030GSN_V1

PM3030GSN V1 PoE交换机为24端口10/100/1000Mbps PoE+2G Combo+2GE。PoE端口可以自动检测并向符合IEEE802.3af/at标准的受电设备（PD）供电。同一电缆上的电力和数据传输可以将您的网络扩展到没有电源线或插座的地方，您可以在那里安装AP、IP摄像头或IP电话等设备。

标准 1U 19'' 机架设备

24*10/100/1000Mbps PoE RJ45端口

2*1000Mbps TP/SFP混合端口

2*10/100/1000Mbps RJ45 端口

固定单AC电源设计

Request a quotation: Some commercial or technical fields (material, certification, voltage, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelPM3030GSN_V1

Dimensions(L*W*H)440*207*44mm

Weight<5Kg

Interface24*10/100/1000Mbps PoE RJ45 Port 2*10/100/1000Mbps Combo ports 2*10/100/1000Mbps RJ45 Ports

Switching Capacity56Gbps

Packet Forward Speed41.7Mpps

Operating Temperature0°C to 40 °C

Storage Temperature-40 to 70 ºC

Storage Humidity5 to 90% (non-condensing)

Power InputAC 100-240V 50/60Hz \ \ \

Dual power inputNO(Single power input)

Power hot-plugNO(fixed power supply）

Maximum Power Consumption280W/400W/420W Fanless (Optional)

PoE Power Output30W

PoE Power Budget250W/370W/240W Fanless (Optional)

MTBF(hours)>50000
