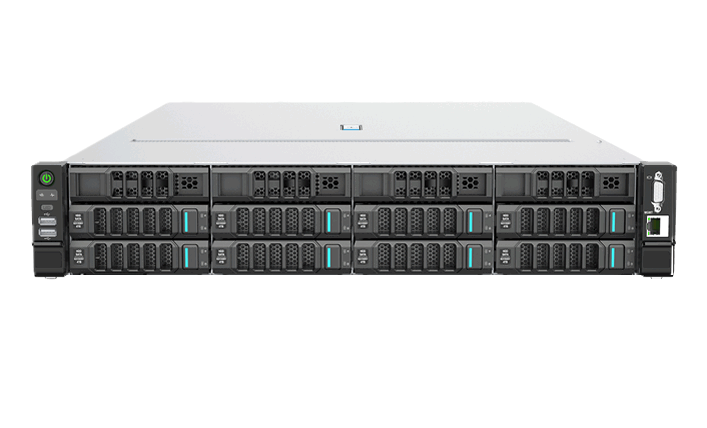

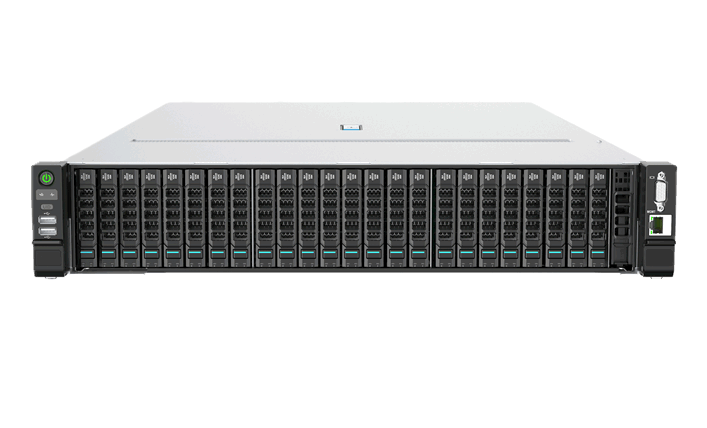

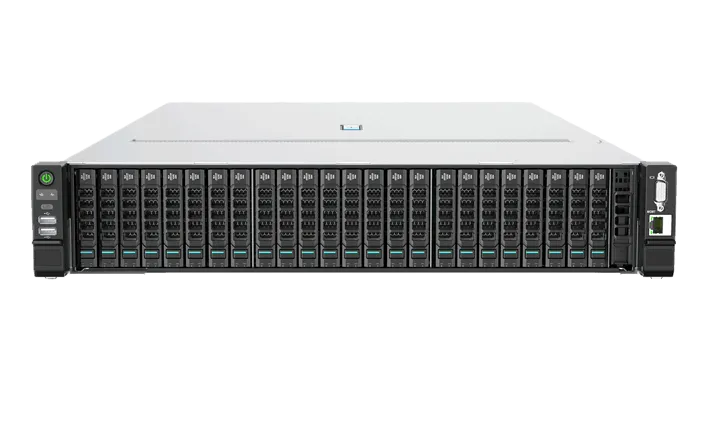

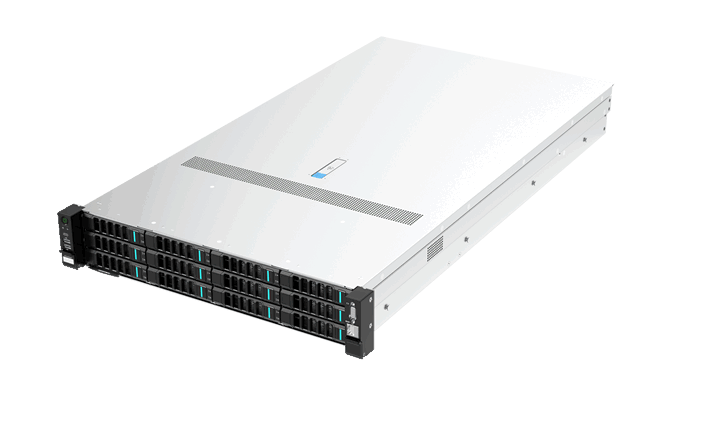

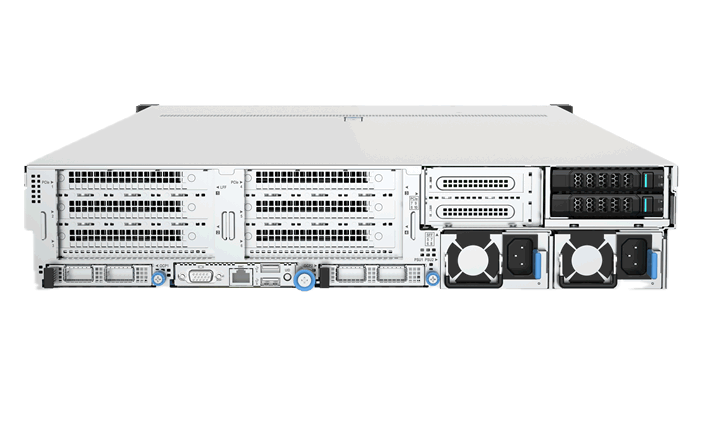

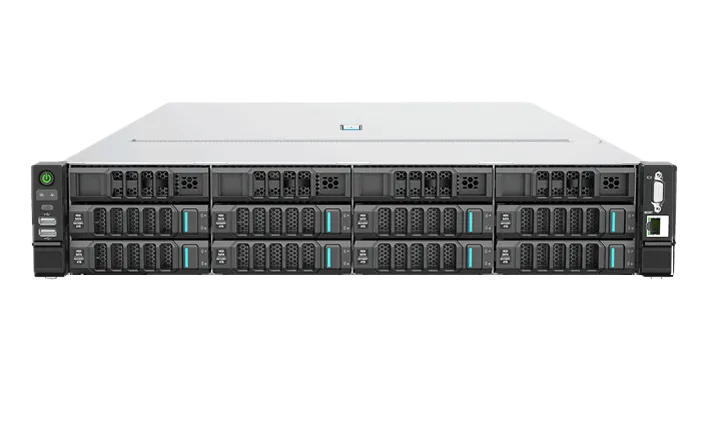

R7260 X5 Server

improvement in processor floating-point performance and a 42% increase in core count. Paired with 8-channel 3200MT/s DDR4 memory technology, it provides up to a 60% increase in memory bandwidth. With support for 12 PCIe slots and up to 35 hard drive slots, the server offers flexible expansion capabilities. It features

improvement in processor floating-point performance and a 42% increase in core count. Paired with 8-channel 3200MT/s DDR4 memory technology, it provides up to a 60% increase in memory bandwidth. With support for 12 PCIe slots and up to 35 hard drive slots, the server offers flexible expansion capabilities. It features a power supply efficiency of up to 96% and a standard operating temperature range of 0℃ to 45℃, delivering superior energy efficiency returns for users.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Technical specifications

processorSupports up to 2 cpus, each with up to 40 cores, maximum power 270W

chipsetC621A

memorySupport up to 32 DDR4 memory slots, maximum speed 3200MT/s, support RDIMM or LRDIMM

storage_controllerOptional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60

storage_extensionSupports up to 45 hard drives Supports up to 20 3.5-inch hard drives (12 front, 4 internal, 4 rear) Supports up to 45 2.5-inch hard drives (25 front, 10 internal, 10 rear) supports up to 28 NVMe U.2 hard drives (24 front, 4 rear) 4-block rear) Optional SATA/NVMe* M.2 Options

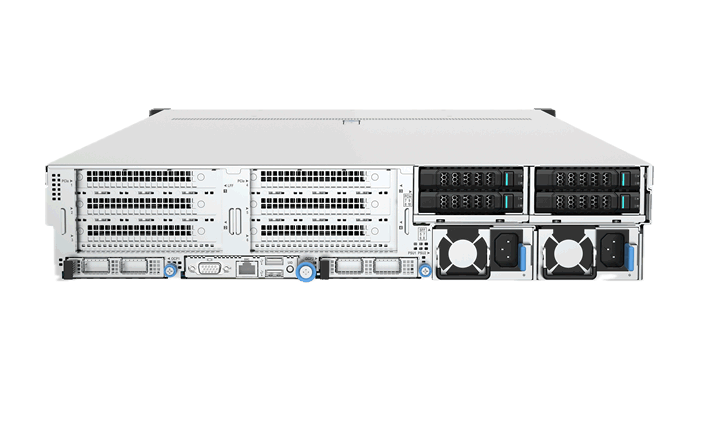

pcie_expansionUp to 17 PCIe expansion slots Up to 15 standard PCIe expansion slots (10 rear + 5 middle), up to 6 x16 slots Up to 2 OCP 3.0 slots

gpu_supportSupport up to 4 double-width GPU cards (single card power consumption up to 450W)

management_softwareIntegrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions

networkOne Gbps dedicated management network port on board Two OCP3.0 network adapters Optional Network adapters based on standard PCIe slots

i_o_interfaceStandard RJ45 management network port, 1 rear VGA port, 4 USB ports (2 front, 2 rear) Optional expansion card supports 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management network port Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port

securitySupport chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module

power_supplyOptional 550 w / 800 w / 1300 w / 1600 w / 2000 w / 2600 w / 2700 w / 3200 w CRPS standard power, support of 1 + 1 redundancy

operating_temperature5 ° C ~ 45 ° C (The operating temperature is affected by different configurations, please refer to the product technical documentation for details)

appearance_chassis_size2U standard chassis 87mm(H)*447.4mm(W)*800mm(D) (without safety panel)

modelR7260 X5 Server
