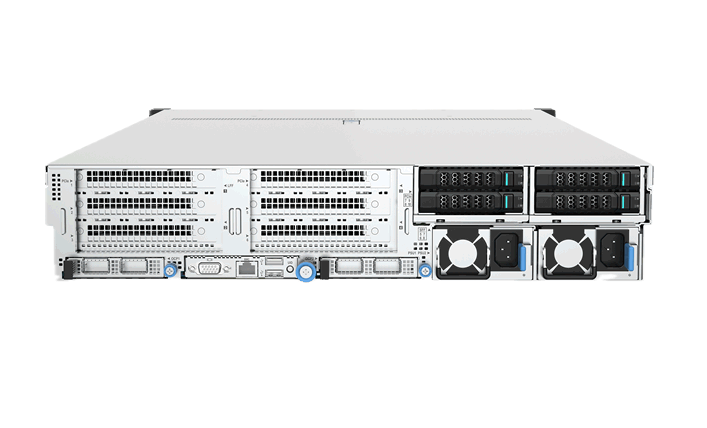

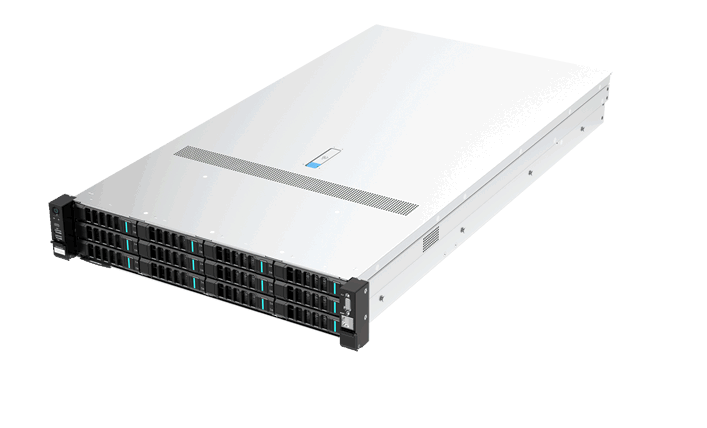

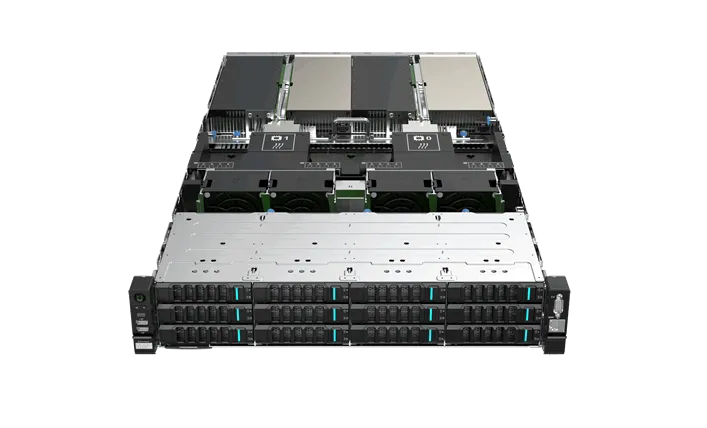

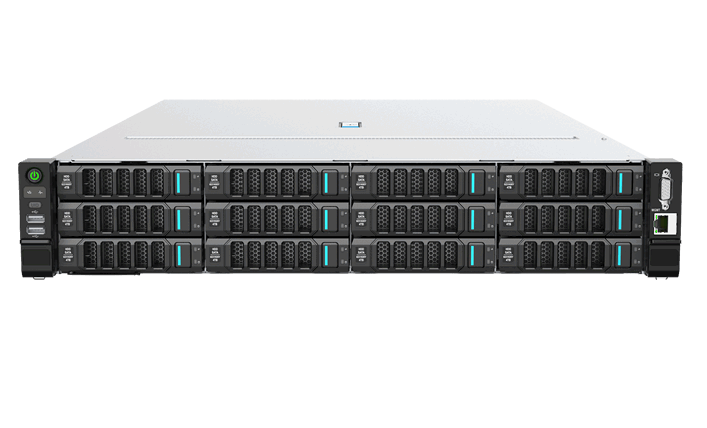

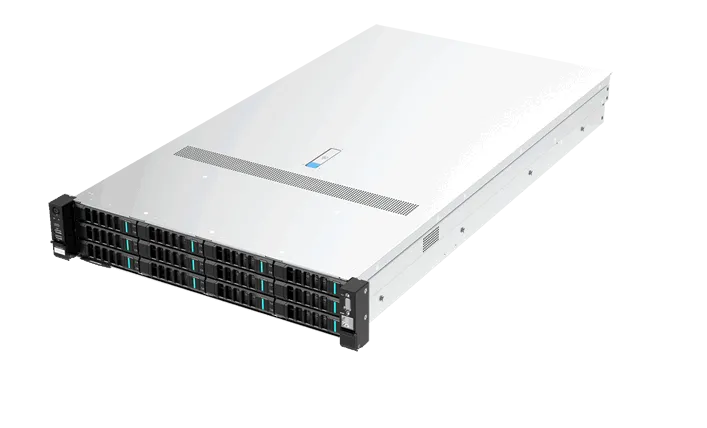

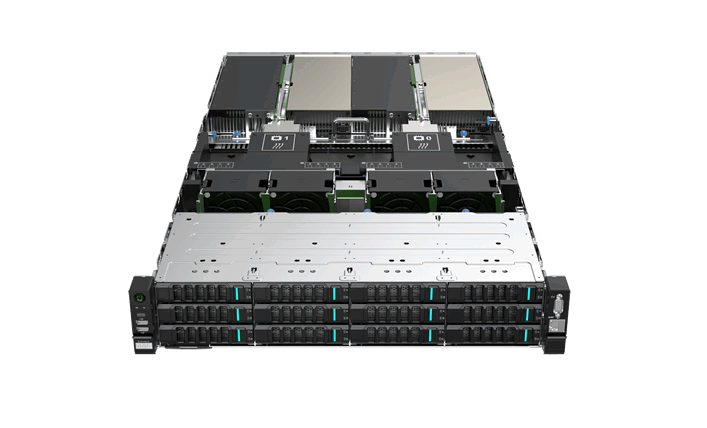

R7260 X6 Server

The new-generation R7260 X6 server supports upto 2 CPUs. Paired with 8-channel 5600 MT/s DDR5memory technology, it delivers up to a 50% increasein memory bandwidth.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

processorMaximum support 2 cpus, a single maximum 64 cores, maximum power 385W, support HBM technology

chipsetC741

memorySupports up to 32 DDR5 memory slots at rates up to 5600MT/s, supports RDIMMs or LRDIMMs, and has capacities up to 8TB CXL 1.1*

storage_controllerOptional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60

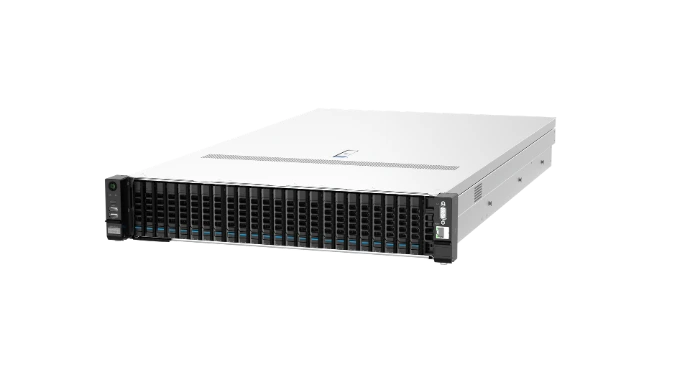

storage_extensionSupports up to 49 hard drives Supports up to 24 3.5-inch hard drives (12 front, 12 internal) Supports up to 45 2.5-inch hard drives (25 front, 10 internal, 10 rear), Additional support for 4 E1.S hard disks Support for up to 34 NVMe U.2 hard disks (24 front, 10 rear) Optional SATA/NVMe* M.2 options

pcie_expansionUp to 22 PCIe expansion slots Up to 20 standard PCIe expansion slots (10 rear + 10 middle) Up to 2 OCP 3.0 slots

gpu_supportSupport up to 4 double-width GPU cards (single card power consumption up to 450W)

management_softwareIntegrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions

networkOne Gbps dedicated management network port on board Two OCP3.0 network adapters Optional Network adapters based on standard PCIe slots

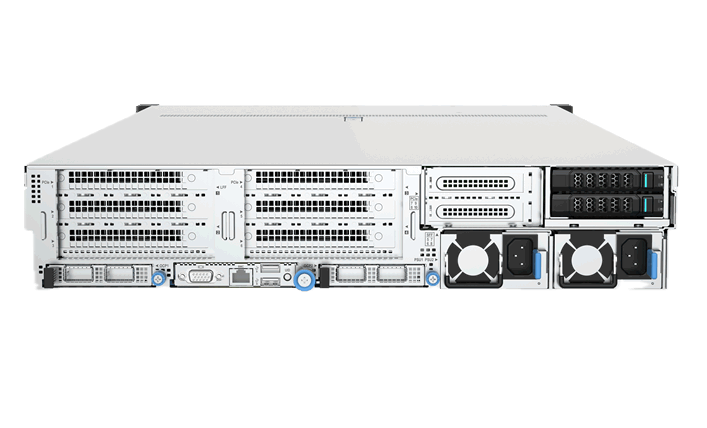

i_o_interfaceStandard RJ45 management network port, 1 rear VGA port, 4 USB ports (2 front, 2 rear) Optional expansion card supports 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management network port Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port

securitySupport chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module

power_supplyOptional 800 w / 1300 w / 1600 w / 2000 w / 2600 w / 2700 w / 3200 w CRPS standard power supply, support of 1 + 1 redundancy

operating_temperature5 ° C ~ 45 ° C (The operating temperature can be affected by different configurations. For details, see the product technical documentation.)

appearance_chassis_size2U standard chassis 87mm(H)*447.4mm(W)*800mm(D) (without safety panel)

modelR7260 X6 Server
