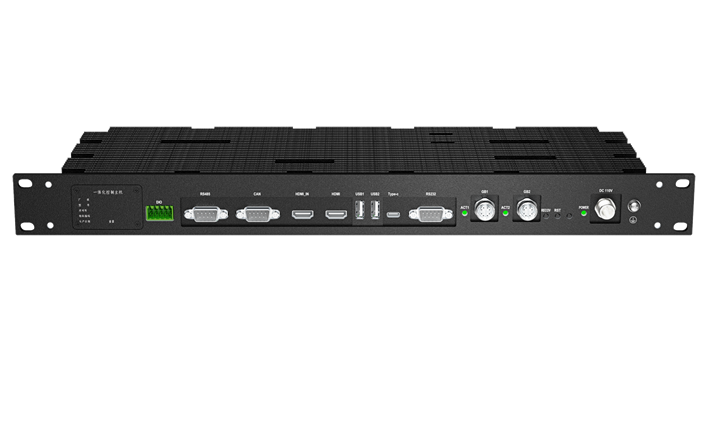

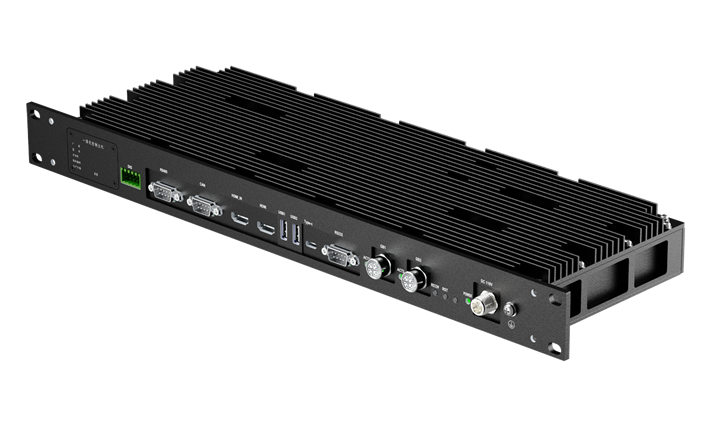

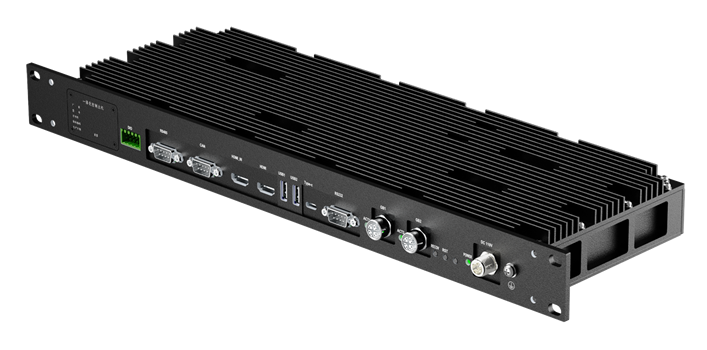

RFCOM-1208 1U Edge Computing unit

The RFCOM-1208 Internet of Things Communication Management Machine is a multi-interface, high-performance communication management terminal designed for industrial control environm

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

optional_module_tdJetson Orin NX module
modelONX 16GB、ONX 8GB
core_architectureAmpere GPU + Arm Cortex-A78AE CPU
cpu-8 cores (2 clusters, 4 cores/clusters) - Maximum frequency: 2 GHz
gpu-NVIDIA Ampere architecture -CUDA cores: 1024 -Tensor Cores: 32
ai_computing_power_int8- 100 TOPS（16GB） - 70 TOPS（8GB）
lpddr5- 16GB 128-bit - 8GB 128-bit
storage_key_mNVMe solid-state drive available from 128GB to 1TB
display_interface- HDMI 2.1 x 1 - Maximum resolution of 4K30
video_input_interface- HDMI-NI
usb_interface- 2x USB TYPE-A 3.2 Gen2x1（10 Gbps） - 1x USB 2.0 TYPE-C（Burn）
ethernet- 2x 10/100/1000BASE-T Ethernet M12 Gigabit Ethernet port
can- 2x CAN FD（Isolation） - Support ISO 11898-1:2015 - Maximum baud rate：1 Mbps
rs485- 2x RS485（Isolation） - TA/EIA-485A - Maximum baud rate：250 Kbps
didoDIH x2/DIL x2 DOH x2/DOL x2
module_power_consumption- ONX 16GB：10W/15W/25W - ONX 8GB：10W/15W/20W
working_temperature-10°C~50°C
mechanical_dimensions482.6mm*154mm*44.5mm
extension_interfaceSupports dual solid-state drives (x4+x2), built-in TF card slot, built-in fan interface, built-in MIPI, built-in 5G M.2 interface, etc
applicable_scenariosEdge Computing (Smart Cameras, Industrial Automation
