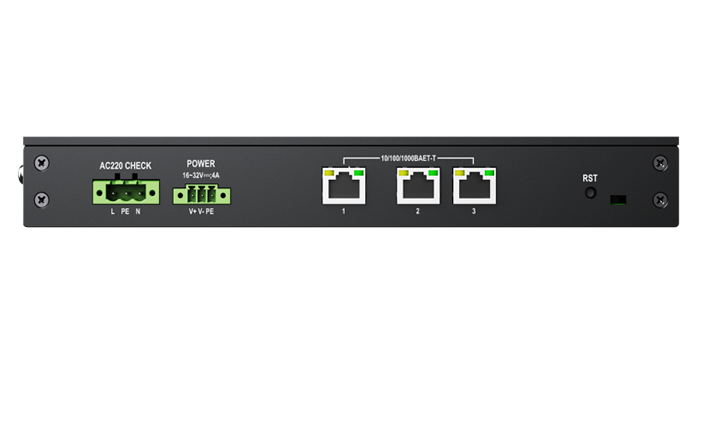

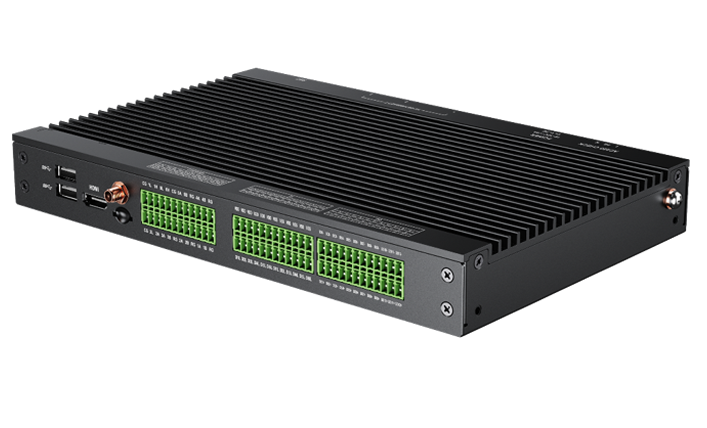

RFCOM-508 All-Purpose 4G Industrial Gateway

PORTOWER product

RFCOM-508 All-Purpose 4G Industrial Gateway

The RFCOM-508 industrial gateway is a high-performance communication device specifically designed for industrial Internet of Things (IIoT) scenarios, equipped with a domestic high-

Request a quotation: Some commercial or technical fields (dimensions, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

cpuRK3568J，32Bit

operating_systemDebian

storageDDR4:4GB；EMMC:32GB；SSD（256/512/1024GB Optional）

ledSystem: Power*1，RUN*1 LAN : 1000M*3(Link*1，Act*1)

othersRTC/Hardware watchdog

weight1.53kg(No ear loops)

size252mm*159mm*33mm

input_voltageDC:16-32V

power_consumption_static＜5W

power_consumption_full_load＜10W

working_environment_temperature-25～65℃

relative_humidity_of_the_working_environment_non_condensation5%～95%(No condensation）

esdGB/T 17626.2-2018 Contact: 6KV, air: 8KV

eftGB/T 17626.4-2018 Class 3

surgeGB/T 17626.5-2018 Class 3

re_ce_rs_csGB/T 9254.1-2021 Class A

communication_protocolSupport the Modbus RTU communication protocol Support Modbus TCP communication protocol Supports IEC104 communication protocol

communication_machine_softwareSupport data processing and protocol conversion Support modification of network port sorting and IP configuration Supports 485 configuration baud rate, supports stop bit and check bit modification, and supports firmware upgrade

safety_featuresSupport user hierarchical management and password protection

web_end_functionSupport IP search for the management machine Support IP modification Supports login with different permissions and accounts, supports configuration import, and supports configuration summoning Support configuration export. COM configuration export /TCP configuration export/point table configuration export supports operation monitoring

modelRFCOM-508 All-Purpose 4G Industrial Gateway
