PORTOWER product

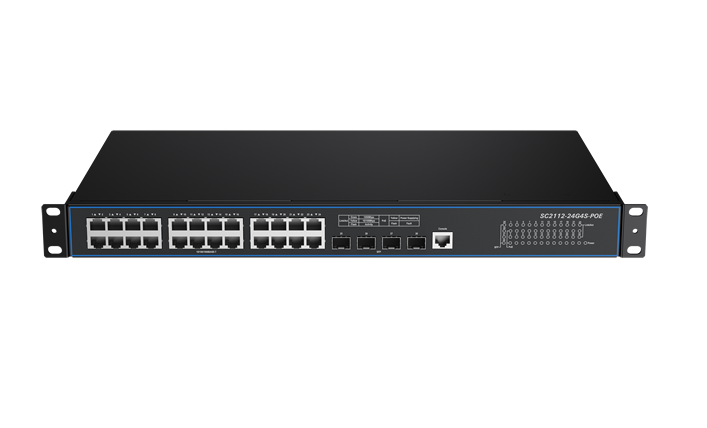

SC2112-24G4S-POE

SC2112 series park switches, positioning Layer 2 network management access PoE switches, port types are rich, providing full gigabit access capability, some models provide PoE+ function, single port can provide up to 30W power supply capability. At the same time, it has rich software features to provide users with a mo

SC2112 series park switches, positioning Layer 2 network management access PoE switches, port types are rich, providing full gigabit access capability, some models provide PoE+ function, single port can provide up to 30W power supply capability. At the same time, it has rich software features to provide users with a more stable, more reliable and easier to use network.

Request a quotation: Some commercial or technical fields (dimensions, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Technical specifications

exchange_capacity56Gbps

packet_forwarding_rate41.66 Mpps

overall_dimensions_length_width_high440x260x44mm

weight≤ 5.0 kg

console_port1 RJ45 console

management_ethernet_portNone

usb_portNone

service_port_description24 Gigabit electrical ports (POE+ support), 4 Gigabit optical ports

input_voltageAC: 100-240Vac, 50/60Hz

power_consumption_full_load400W (including PoE 370W)

working_ambient_temperature-5 ~ 45° C

working_environment_relative_humidity_non_condensation5% ~ 95%(no condensation)

port_featuresSupports IEEE 802.3x flow control Supports broadcast/multicast/unicast storm suppression Supports port auto-negotiation Supports rate and duplex setting Supports MDI auto-flipping Supports link-delay MTU VCT AdminDown Port isolation Port rate limiting and storm suppression LLDP

link_aggregationSupports static aggregation Supports LACP dynamic aggregation

mac_address_tableSupports MAC address learning, aging, and migration Supports static MAC addresses Supports black hole MAC addresses Supports setting the maximum number of MAC addresses to be learned on a port

vlan4K VLAN access, trunk, and hybrid modes Protocol VLAN QinQ

dhcpIPv4 DHCP Client IPv4 DHCP Snooping Option82

multicast_protocolIGMP Snooping IGMP Snooping Fast-leave IGMP Snooping Group-policy drop-unkown Support multicast VLAN (SVGL mode)

loop_protectionSupport STP/RSTP/MSTP Support Root Guard Support BPDU protection Support TC protection Support port Single-port/multi-port loop detection Support ERPS ring protocol

qos_aclSupports FF-SERv QoS Supports flexible queue scheduling algorithm, Supports multiple modes such as SP, WRR, and SP+WRR Packet 802.1p and DSCP priority re-marking IPv4 ACL Ingress ACL ACL Stream speed limit

port_mirroringPort mirroring Flow mirroring Remote mirroring

security_featuresSupports hierarchical user management and password protection Supports 802.1X Supports MAC authentication Supports Radius Supports local authentication Supports login whitelist Supports SSH 2.0 Supports IP Source Guard Anti-DOS attack

management_and_maintenanceSupports File Transfer Protocol (FTP) loading and upgrading Trivial File Transfer Protocol (TFTP) loading and upgrading Supports command line interface (CLI) configuration Support Console local configuration Support Telnet, SSH and other remote configuration Support Web graphical configuration. HTTPS Simple Network Management Protocol (SNMP) SNMP V3 RMON groups 1/2/3/9 System logs and trap NTP and SNTP Ping and Tracert

modelSC2112-24G4S-POE
