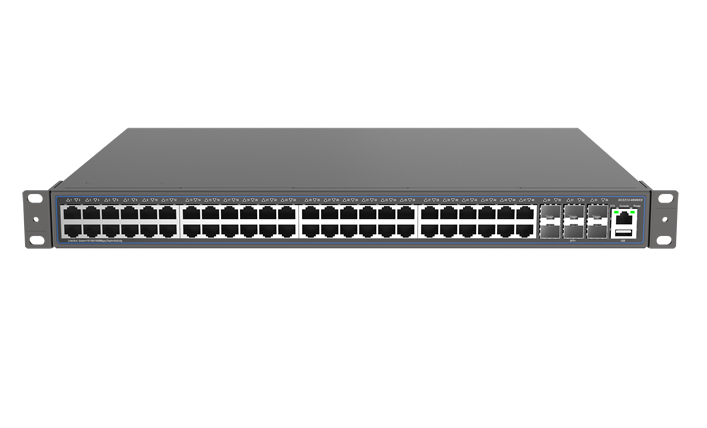

SC3313-48G6XS

SC3313 series campus switch, positioning three-layer network management switch, with 48 gigabit and 6 gigabit optical port combination, to provide users with greater access capability and higher uplink rate, while providing PoE+ model, single port can provide up to 30W power supply capacity, support the three-layer pro

SC3313 series campus switch, positioning three-layer network management switch, with 48 gigabit and 6 gigabit optical port combination, to provide users with greater access capability and higher uplink rate, while providing PoE+ model, single port can provide up to 30W power supply capacity, support the three-layer protocol required by the park scene, can meet the park information. Intelligent transportation, video surveillance and other application scenarios are required to build fast, stable, and efficient networks.

Request a quotation: Some commercial or technical fields (dimensions, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

exchange_capacity216Gbps
packet_forwarding_rate160.7 Mpps
overall_dimensions_length_width_high440*320*44mm
weight≤ 6.0 kg
console_port1 RJ45 console
management_ethernet_portNone
usb_port1 usb2.0 interface
service_port_description48 Gigabit electrical ports, 6 10-gigabit optical ports
input_voltageAC: 100~240, 50/60Hz
power_consumption_static20W
power_consumption_full_load40W
working_ambient_temperature-5 ~ 45° C
working_environment_relative_humidity_non_condensation5% ~ 95%(no condensation)
port_featuresSupports IEEE 802.3x flow control Supports broadcast/multicast/unicast storm suppression Supports port auto-negotiation Supports rate and duplex setting Supports MDI auto-flipping Supports link-delay MTU VCT AdminDown Port isolation Port rate limiting and storm suppression LLDP
link_aggregationSupports static aggregation Supports LACP dynamic aggregation Supports unicast MLAG distributed aggregation
mac_address_tableSupports MAC address learning, aging, and migration Supports static MAC addresses Supports black hole MAC addresses Supports setting the maximum number of MAC addresses to be learned on a port
vlanSupport 4K VLAN Support access, trunk, and hybrid modes Support protocol VLAN Support basic QinQ, flexible QinQ, and VLAN mapping Support GVRP/MVRP dynamic VLAN registration protocol
dhcpSupport IPv4/IPv6 DHCP Client Support IPv4/IPv6 DHCP Snooping Support IPv4/IPv6 DHCP Relay Support IPv4/IPv6 DHCP Server Option82
arpSupports static entries Supports dynamic entries Supports gratuitous ARP Supports ARP Detection Supports ARP proxy
routing_protocolIPv4 and IPv6 static routes Equal-cost routes and policy-based routes OSPFv2 and OSPFv3 RIP and RIPNG ISIS uRPF
multicast_protocolIGMP/MLD Snooping IGMP/MLD Snooping Fast-leave IGMP/MLD Snooping Group-policy drop-unkown Supports multicast VLAN (SVGL mode) Supports IGMP and MLD Supports IPv4/Pv6 PIM SM
loop_protectionSupport STP/RSTP/MSTP Support Root Guard Support BPDU protection Support TC protection Support port Single-port/multi-port loop detection Support ERPS ring protocol
reliabilitySmartLink MonitorLink BFD VRRP
qos_aclSupports FF-SERv QoS Supports flexible queue scheduling algorithm, Supports multiple modes such as SP, WRR, and SP+WRR The 802.1p and DSCP priority re-marking of packets Supports L2, L3, and L4 ACLs Supports IPv4 ACLs Supports IPv6 ACLs Ingress ACL ACL traffic rate limiting User-defined ACL Time range ACL/td>
port_mirroringPort mirroring Flow mirroring Remote mirroring
security_featuresSupports hierarchical user management and password protection Supports 802.1X Supports MAC authentication Supports Radius Supports local authentication Supports login whitelist Supports SSH 2.0 Supports IP Source Guard v Anti-DOS attack
management_and_maintenanceSupports File Transfer Protocol (FTP) loading and upgrading Trivial File Transfer Protocol (TFTP) loading and upgrading Supports command line interface (CLI) configuration Support Console local configuration Support Telnet, SSH and other remote configuration Support Web graphical configuration. HTTPS Simple Network Management Protocol (SNMP) SNMP V3 RMON groups 1/2/3/9 System logs and trap NTP and SNTP 1588 (PTP) Ping and Tracert
modelSC3313-48G6XS
