PORTOWER product

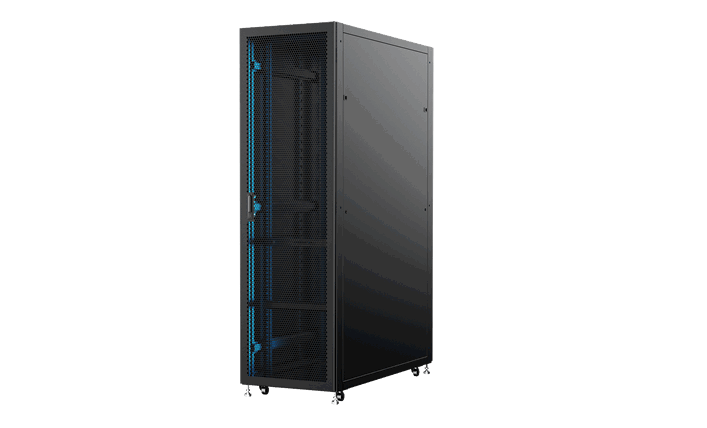

Single cabinet -CR2000

The C2000 mesh cabinet is an important part of a data center and provides proper storage space for related devices in the equipment room. The cabinet features high reliability, high security, high compatibility, and high ease of use, and is widely used in various data centers.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

structure19-inch standard cabinet, supporting multiple sizes Single front door, double rear door, sectional quick-dismounting side panels for easy disassembly Top plate and bottom plate with cover plate for easy up and down/front and rear cabling

materialHigh quality rolled steel sheet, high strength structure, full welding process 2.0mm equipment mounting beam, 1.5mm load bearing frame, 1.2mm door panel and side panel High strength through hole laminate, 100kg load bearing capacity, and good heat dissipation

advantagesBearing 1300kg Passed the seismic intensity test of 8 and 9 door through-hole ratio ≥ 75%, better ventilation and heat dissipation Standard blind plate, optimize air flow

featuresThree-point mechanical lock body structure, heaven and earth connecting rod, more tight locking, more smooth switching Standard wiring ring, more beautiful wiring Standard 19-inch installation ground copper bar

mesh_cabinetCR2000-608042-B | 42U | 600 | 800 | 2000 | Single glass front door, single mesh rear door

modelSingle cabinet -CR2000

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
