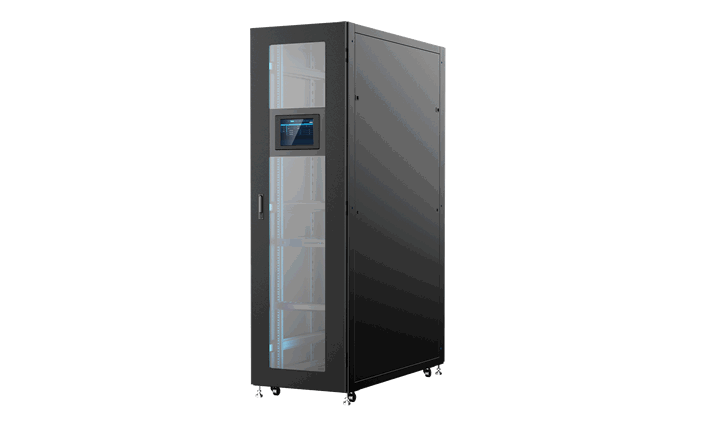

Single cabinet -CR4000

The CR4000 closed cloud cabinet is equipped with the microenvironment system, power supply and distribution system and cooling system, which can collect the operating conditions in the cabinet in real time, and has the ability of centralized monitoring and remote management of multiple nodes and outlets, realizing the

The CR4000 closed cloud cabinet is equipped with the microenvironment system, power supply and distribution system and cooling system, which can collect the operating conditions in the cabinet in real time, and has the ability of centralized monitoring and remote management of multiple nodes and outlets, realizing the deployment requirements of

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

cabinet_systemCabinet dimensions: W x D x H (mm) | 600× 1200× 2000
cabinet_doorSingle opening glass, single opening closed rear door
power_distribution_system_inputInput main switch | 63A(3kVA), 63A(6kVA), 80A(10kVA)
power_distribution_system_upsRack UPS capacity | 1kVA/2kVA/3kVA/6kVA/10kVA
rack_ups_configurationSingle-phase 220VAC, 50Hz/60Hz
rack_ups_power_factor0.9
lithium_ion_upsHost power 6kVA/10kVA, DC240V,15AH/20AH/25AH lithium Pool
distribution_system_pduInstallation method | Horizontal installation/vertical installation
typeSupport (GB, EU)
distribution_system_batteryLead-acid battery capacity | 9-250AH
number_of_groups1-4
monitoring_systemMonitor host | CR1000 Series Intelligent monitoring host
temperature_and_humidity_sensorStandard
water_sensorOptional
smoke_detectorStandard
touch_screen_10_1_inchesStandard
cameraOptional
audible_and_visual_alarmOptional
sms_alarmOptional
door_sensorStandard
monitoring_platformStandard
fire_protection_systemFire unit | Optional, smoke, sound and light alarm, fire linkage
refrigeration_systemCooling mode | Direct expansion air cooling
installation_methodRack Mount
cooling_capacity3-12KW
modelSingle cabinet -CR4000
