Single cabinet (outdoor) -CR5000

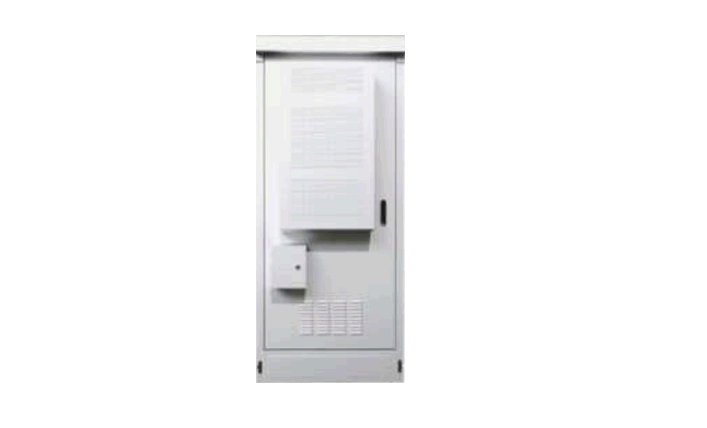

The CR5000 outdoor cloud cabinet is suitable for outdoor scenarios and integrates cabinets, monitoring, power distribution, and cooling systems. All components are pre-installed in the factory, delivered before delivery, and delivered after landing, which ensures the quality of products before delivery and realizes the

The CR5000 outdoor cloud cabinet is suitable for outdoor scenarios and integrates cabinets, monitoring, power distribution, and cooling systems. All components are pre-installed in the factory, delivered before delivery, and delivered after landing, which ensures the quality of products before delivery and realizes the needs of rapid outdoor deployment.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

cabinet_systemCabinet dimensions: W x D x H (mm) | 650-900× 650-1200× 1000-2200
cabinet_doorSingle bin outdoor closed cabinet, front and rear doors open single
frameworkCold rolled steel plate +EPS sandwich plate
power_distribution_system_inputInput main switch | 32A/3P, 100A/2P
power_distribution_system_communication_powerCapacity | 48V200A, 48V300A
configurationCommunication power supply -48V Rack mounted, 4U
distribution_system_pduInstallation method | Cross mounting
typeSupport various port model combinations (GB, European standard)
distribution_system_batteryModel | 48V lithium battery with BMS system, capacity optional
monitoring_systemMonitor host | CR1000 Series Intelligent monitoring host, 1U rack
temperature_and_humidity_sensorStandard
water_sensorOptional
smoke_detectorStandard
cameraOptional
audible_and_visual_alarmOptional
sms_alarmOptional
monitoring_platformStandard
fire_protection_systemFire unit | Optional, smoke, sound and light alarm, fire linkage
refrigeration_systemCooling mode | Direct expansion air cooling
installation_methodIntegrated air conditioning outdoor type, DC 48V
cooling_capacity600W-3000W
modelSingle cabinet (outdoor) -CR5000
