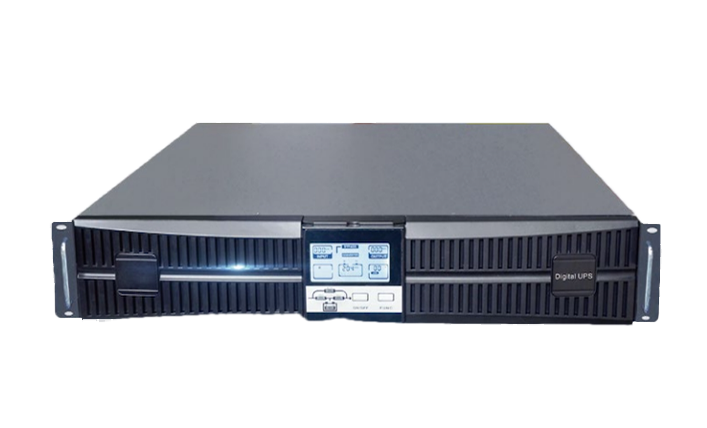

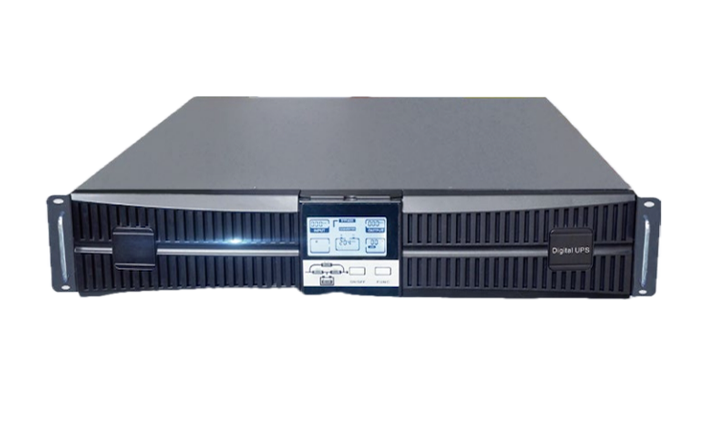

UPS-R-11 Series 1-10kVA Rack UPS

UPS-R-11 Series 1-10kVA rack UPS is the ideal power supply solution for small scenarios, eliminating all types of grid problems. Compact model, high power density, effectively save installation space.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

modelUPS-R-1101 | UPS-R-1102 | UPS-R-1103 | UPS-R-116 | UPS-R-1110
maximum_load1kVA | 2kVA | 3kVA | 6kVA | 10kVA
900w1800W | 2700W | 6000W | 10000W
input_voltage_range110~288VAC (220/230/240VAC)
input_voltage_frequency40-70Hz
input_power_factor≥ 0.97 | ≥ 0.97 | ≥ 0.97 | ≥ 0.99 | ≥ 0.99
output_voltage_range220VAC ± 1 %
output_voltage_frequency50/60Hz adaptive (optional)
output_power_factor0.9 | 0.9 | 0.9 | 1 | 1
output_overload_capability_inverter_mode105%~130%: Bypass is cut after 1 minute; 150%: Bypass after 30 seconds | 110%: Bypass after 10 minutes; 130%: Bypass is cut after 1 minute; 150%: Bypass after 30 seconds, shut down after 1 minute
efficiencyMain mode 87%; ECO Mode 94% | Main mode 90%; ECO Mode 97% | Main mode 95%; ECO Mode 98%
maximum_battery_charging_current4A | 4A | 4A | 5A (10A optional) | 5A (10A optional)
battery_dc_voltage36VDC | 72VDC | 96VDC | 192-288VDC | 192-288VDC
communication_interfaceRS232, SNMP
optionsPluggable DB9 dry contact card, Type B USB port, SNMP communication card, RS485 interface | Pluggable dry contact card, service switch, parallel card, battery pack, USB, SNMP, RS485 interface
bypass_input/ | / | / | Standard | Standard
ambient_temperature0-40℃
ambient_humidity0-95%
size_l_d_h_mm440× 430× 86 (2U) | 440× 480× 86 (2U) | 440× 480× 86 (2U) | 440× 550× 86 (2U) | 440× 550× 86 (2U)
special_instructionsServer cabinet depth ≥ 0.8m) | Server cabinet depth ≥ 0.8m) | Server cabinet depth ≥ 0.8m) | Server cabinet depth ≥ 1m | Server cabinet depth ≥ 1m
weight_kg7 | 8 | 9.5 | 16 | 18
