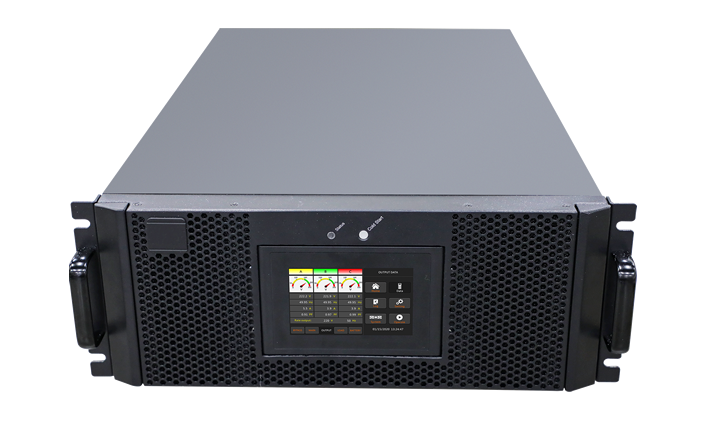

UPS-R-33 Series 15-40kVA Rack UPS

The UPS-R-33 series 15-40kVA rack-mounted UPS is the ideal power supply solution for small scenarios, eliminating all types of grid problems. Compact model, high power density, effectively save installation space.

Request a quotation: Some commercial or technical fields (dimensions, weight, power, material, certification, voltage, performance, price) are not present in the source records. PORTOWER can confirm them for your project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

modelUPS-R-3315 | UPS-R-3320 | UPS-R-3330 | UPS-R-3340
capacity15kVA | 20kVA | 30kVA | 40kVA
main_inputInput wiring | 3-phase + N-wire + ground
input_voltage380/400/415VAC (line voltage)
input_frequency50/60Hz
power_factor>0.99
batteryBattery voltage | ±192-±264VDC (32 ~ 44 knots)
bypassBypass voltage | 380/400/415VAC (line voltage)
voltage_rangecan be set, the default - 20% ~ + 15% ceiling: + 10%, + 15%, + 20% and + 25%; Lower limit: -10%, -15%, -20%, -30%, -40%
bypass_frequency_range50/60Hz (rated power), adjustable range: ±1Hz, ±3Hz, ±5Hz
outputRated output voltage | 380/400/415VAC (line voltage)
rated_frequency50/60Hz
output_power_factor1
inverter_overload110%, transfer to bypass after 1 hour; 125%, bypass in 10 minutes; 150%, 1 minute to bypass; >150%, 200ms after bypass
frequency_accuracy0.10%
tracking_rangeConfigurable, ±0.5Hz-±5Hz, default ±3Hz
systemMain mode efficiency | ≥95% | ≥95.5% | ≥96% | ≥96%
battery_mode_efficiency≥94.5% | ≥95% | ≥95.5% | ≥95.5%
displayLCD+LED+ Color touch screen
languageMultiple languages supported, Simplified Chinese, English, Czech, French, German, Russian, Portuguese, Italian, Polish, Turkish, Korean, Spanish, Traditional Chinese
communication_interfaceRS232, RS485, dry contact, battery cold start | RS485, dry contact, battery cold start
operating_temperature0-40℃
storage_temperature-40℃ ~ 70℃
relative_humidity0-95% (no condensation)
optionsSNMP network communication card, parallel components
size_l_d_h_mm438× 750× 130 | 438× 750× 130 | 438× 770× 174 | 438× 770× 174
special_instructionsServer cabinet depth ≥ 1.2 m
weight_kg25 | 30 | 41 | 41
